Product | High Bay
AR 2262-B LED
High bay for LED SPOT module, maximum 4 425 lumens

Color(s) :

Norms : Class I | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

  • High bay for LED SPOT module, maximum 4 425 lumens
  • CRI of 80 or 90
  • MacAdam Ellipse: 3 SDCM
  • Available in 3 000 K and 4 000 K
  • 50 000 hours lamp life (L80B10)
  • Luminous efficiency of system up to 142,5 lm/W

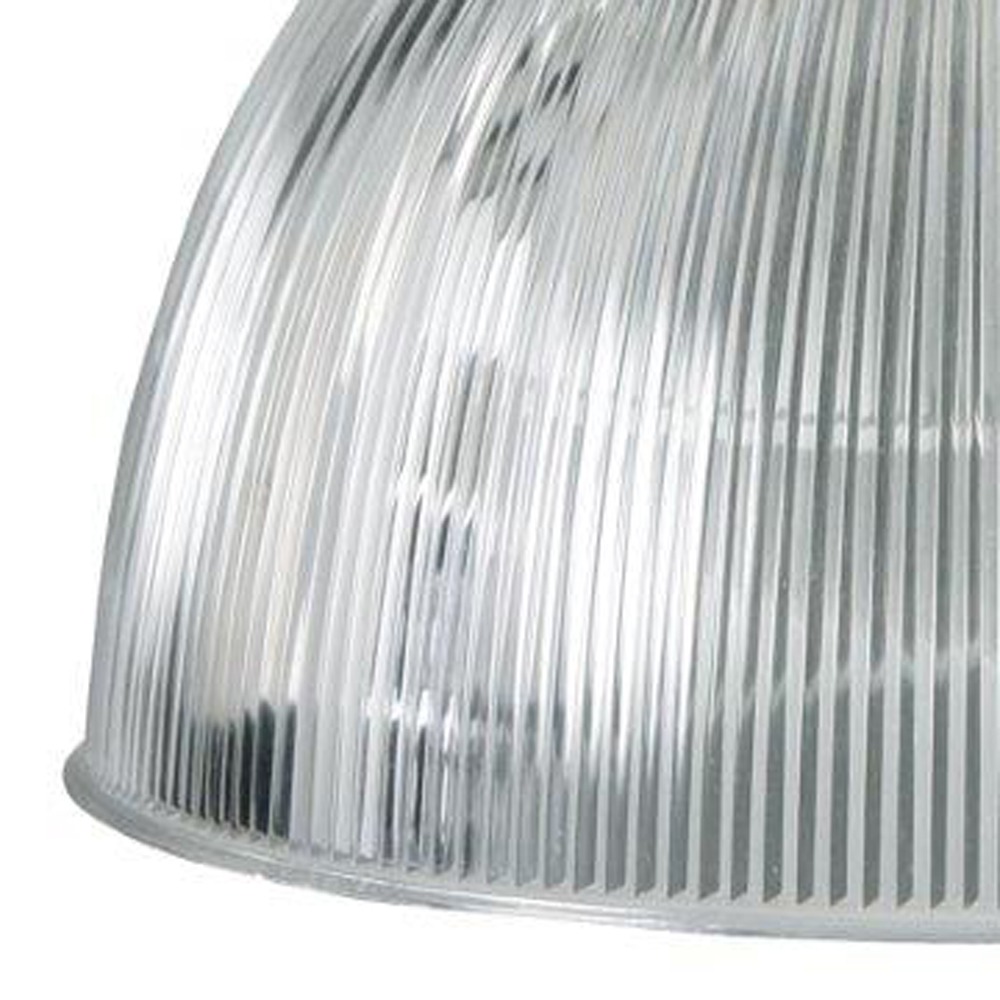

  • Grooved and clear diffuser made of polycarbonate (DSC)
  • Housing made of painted die-cast aluminium
  • Static heat sink
  • Weight: approx. 1,7 kg
  • Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
  • Option(s): Fast connector (CORD), Varnished diffuser (colour upon request), Suspension kit (KS)

Type of lighting General
Application domain Retail / stores, Grocery stores, Specialized stores
Color temperature 3000 K, 4000 K
Mounting type Suspended
IP 20
