Product | Downlights

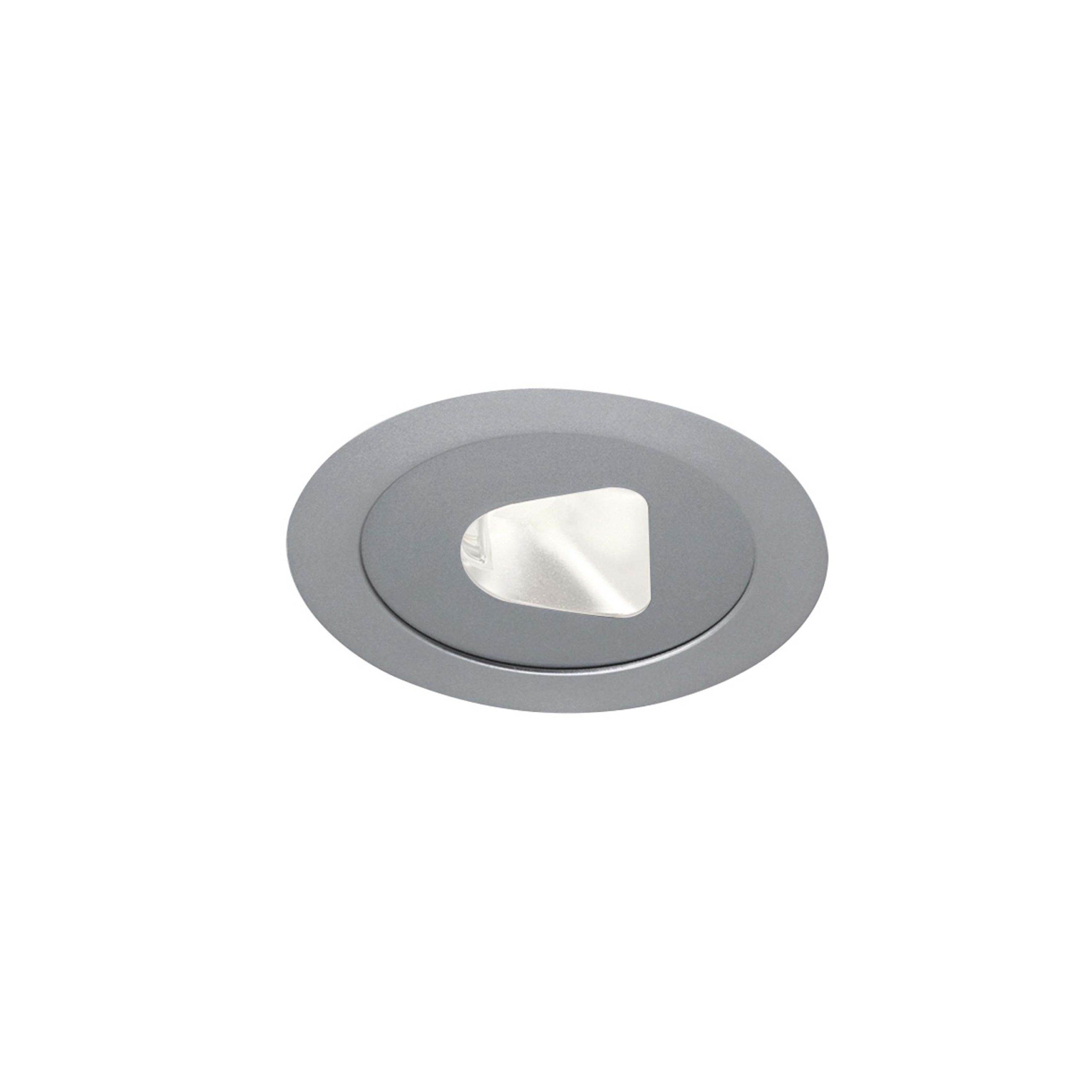

DL 3921 LED ASY
Circular asymmetrical recessed downlight for LED SPOT module, maximum 6 133 lumens

Color(s) :

Norms : Classe I | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency Energy Class : A++
Recessed cut out :
Ø185 mm

Download the technical sheet:

IRC of 80 or 90
MacAdam Ellipse: 3 SDCM
Asymmetrical reflector made of injected and aluminized polycarbonate
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 147,5 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Static heat sink
Weight: approx. 1,3 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): Fast connector (CORD)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 4000 K
Mounting type Encastré
IP 20
