Product | Orientable and Adjustable
EO 5056-A LED D120

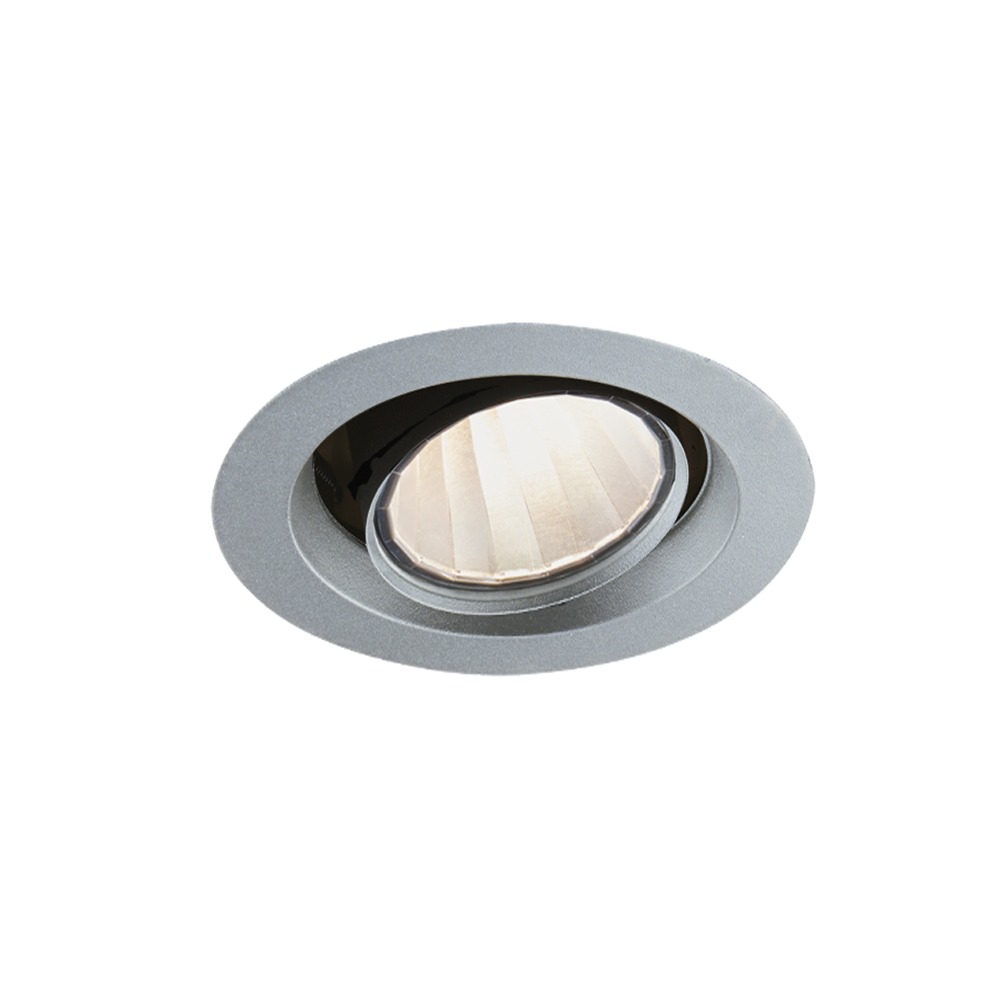

Circular recessed orientable spotlight for LED SPOT module, maximum 4 685 lumens

Color(s) :

Adjustable :

Norms : Class I IP 20 I 650 degrees

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E

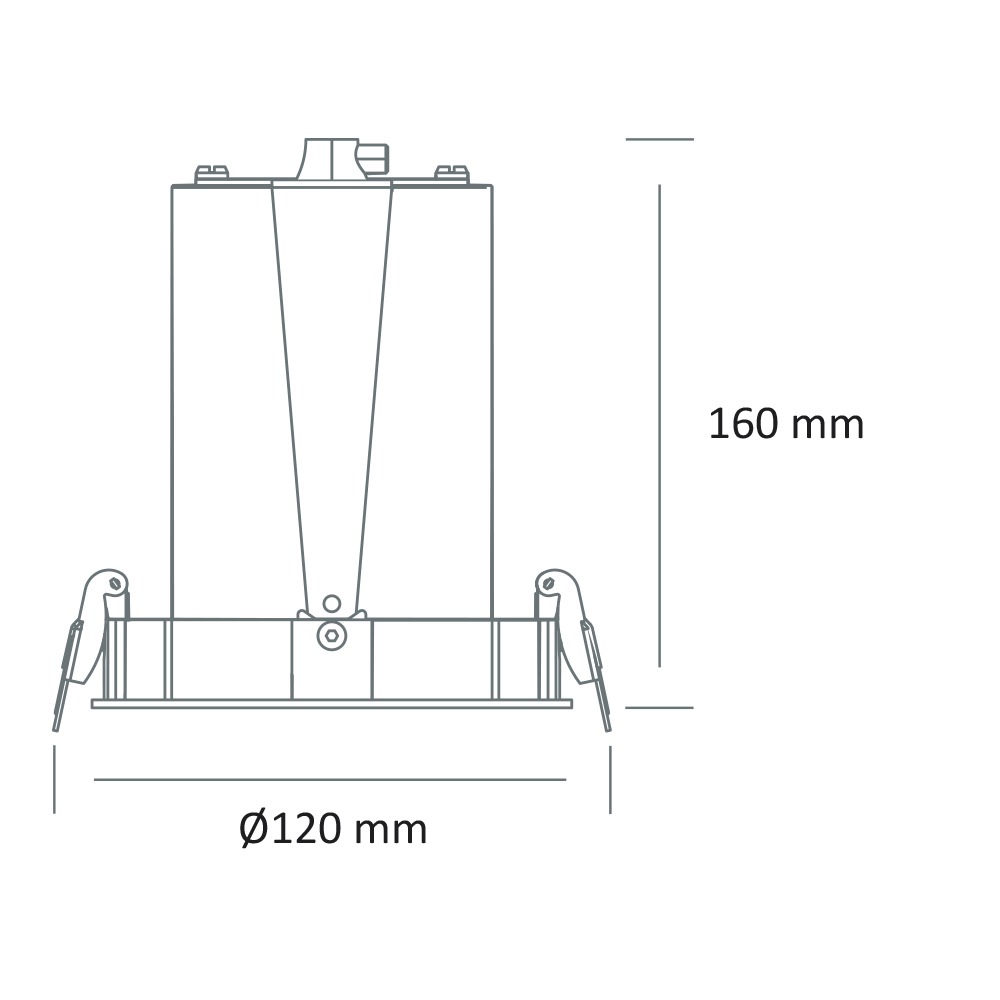

Recessed cut out :
Ø114 mm

Download the technical sheet:

  • CRI of 80 or 90
    MacAdam Ellipse: 3 SDCM
    Available in 2 500K, 3 000 K and 4 000 K
    50 000 hours lamp life (L80B10)
    Luminous efficiency of system up to 145,5 lm/W
    Springs in pressure for easier installation
    Ring made of die-cast aluminium
    Static heat sink
    Weight: Approx. 1 kg
    Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
    Option(s): Fast connector (CORD)

Type of lighting Accentuation
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2500 K, 3000 K, 4000 K
Mounting type Encastré
IP 20
