Product | Continuous rows

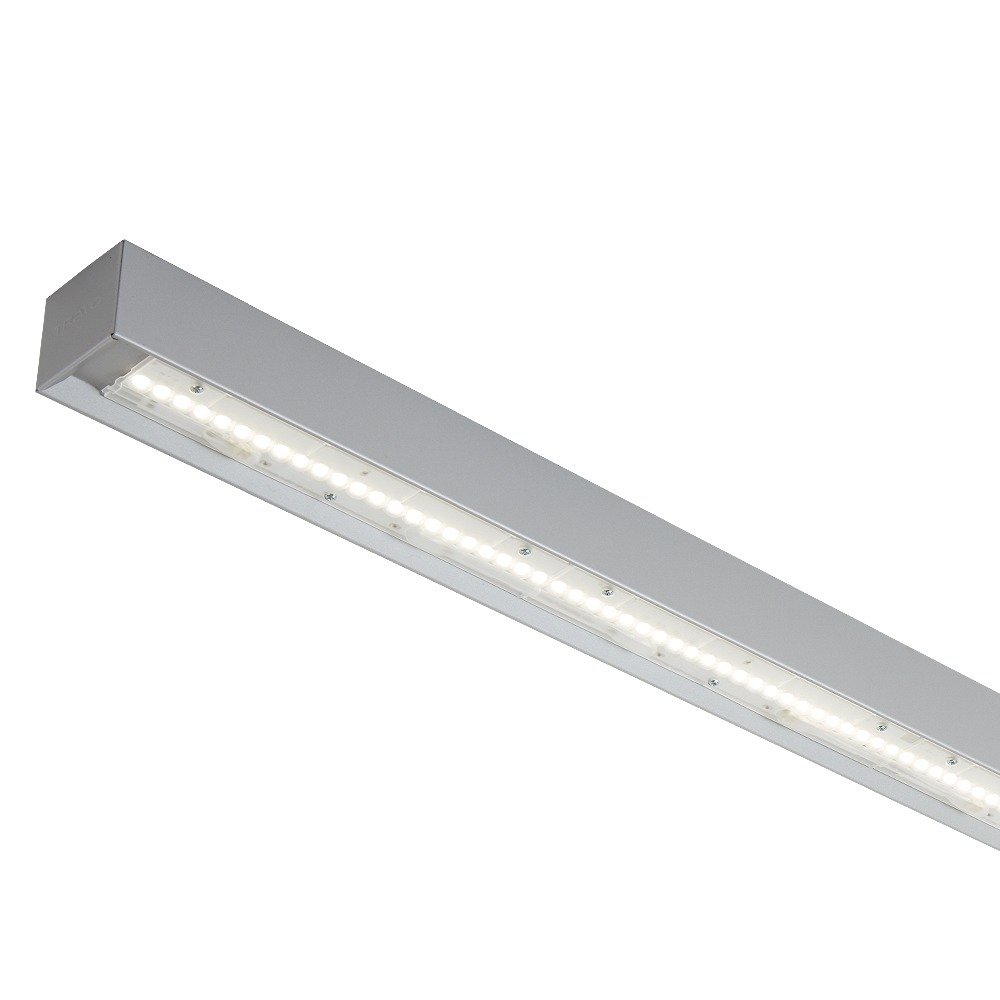

LC 3976 LED EVO-HE
Suspended continuous line for LED LINEAR module, maximum 13,276 lumens

Color(s) :

Norms : Class I IP 20 (light) 650 degrees Fahrenheit IK 10

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

  • CRI of 80
  • MacAdam Ellipses: 3 SDCM
  • Available in 3,000K, 3500K, 4,000K and 5,000K
  • Lifespan 50,000 hours (L90B10)
  • System light efficiency up to 171.5 lm/W
  • Available as an individual module, in continuous and discontinuous versions
  • Pre-lacquered steel sheet body
  • Cluster optics made of lenses, polycarbonate (PC)
  • Line tips and suspension stirrups available as accessories
  • Static heat sink
  • Optical compartment protected from shocks and dust
  • Sliding suspension, maximum entrax 3,500 mm
  • Mechanical junction without tools
  • Weight: approx. 4 kg (1750 mm), 8 kg (3500 mm)
  • Standard body lengths: 1,750 mm, 3,500 mm
  • Color: White (WH), Grey (GR), Black (BK)
  • Converter: Fixed, DALI Gradation Converter (CDIMMDALI)
  • Options: Brightness and-or Presence Detection Cell (CEL), Autonomous Security Lighting Block (BAES)

Type of lighting
Application domain
Color temperature 3000 K, 3500 K, 4000 K, 5000 K
Mounting type Suspended
IP
