Product | Track Lighting Luminaires
LC 3987 EVO LED

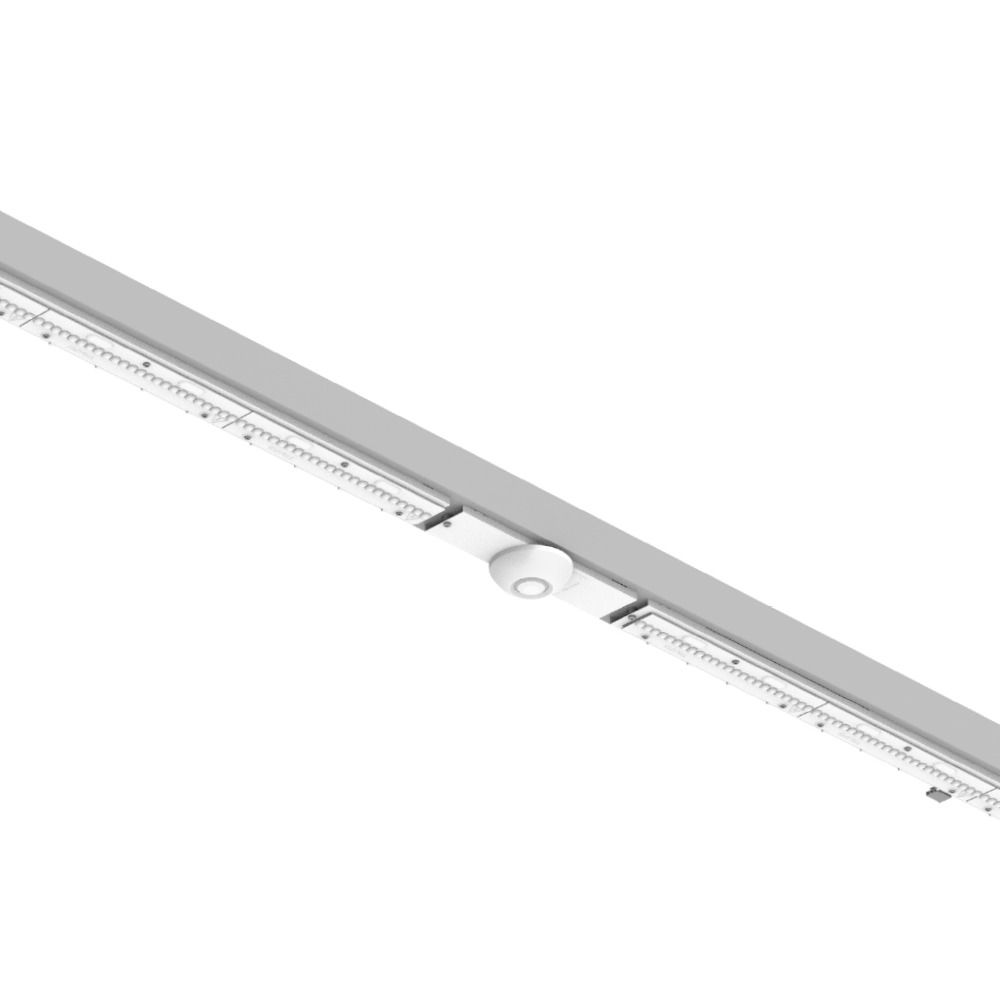

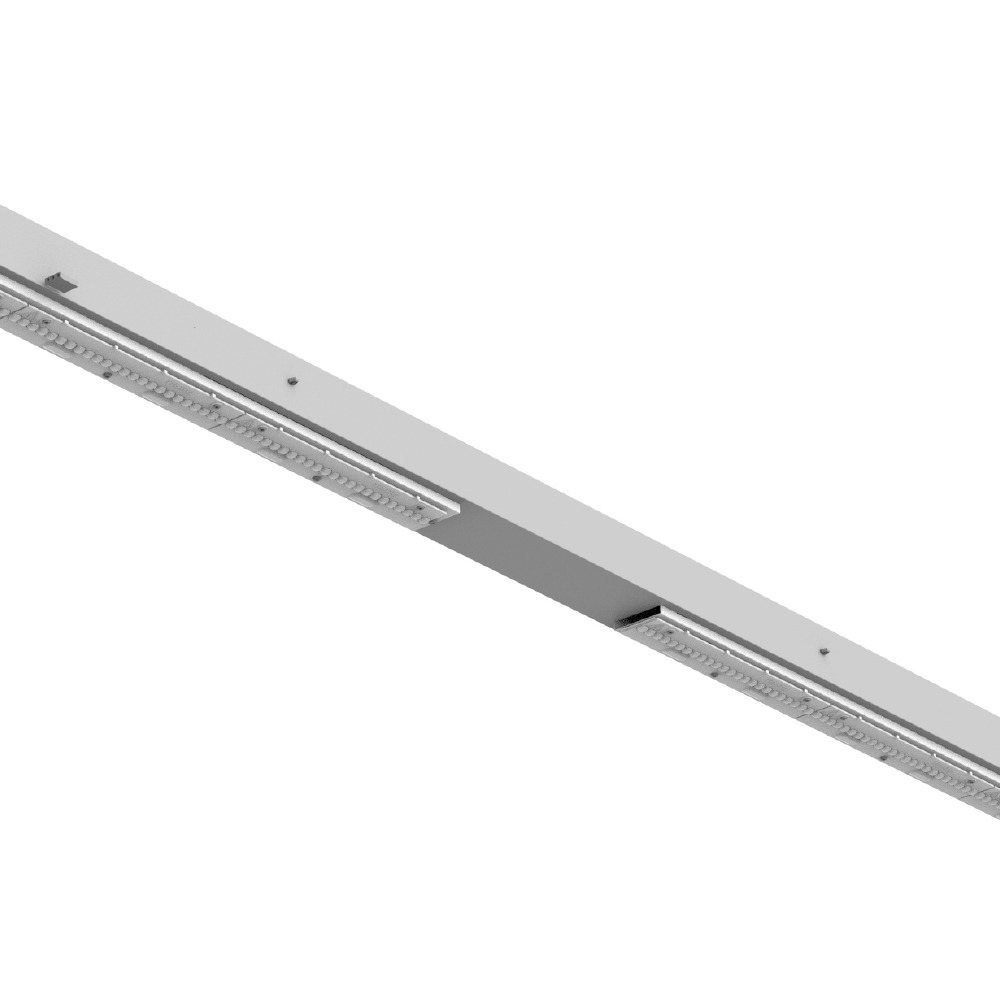

Suspended continuous row lighting for LINEAR LED module, maximum 25 080 lumens

Color(s) :

Norms : Classe I | IP 20 (luminaire) | 650° | IK 10 | RG0

Light distribution :

Driver(s) :

Efficiency Energy Class : C
Recessed cut out :

Download the technical sheet:

Suspended continuous row lighting for LINEAR LED module,
maximum 25 080 lumens
CRI of 80
MacAdam Ellipse : 3SDCM
Available in 3 000 K and 4 000 K
50 000 hours of Lamp life (L80B20)
Luminous efficiency of system up to 176,1 lm/W
Static heat sink
Available in individual module, in continuous and discontinuous
version
Housing made of prelacquered steel
Optical system, made of grooved extruded polymethyl methacrylate
(PMMA)
Interchangeable LED boards, handling and maintenance from below.
Endcaps and suspension brackets are available in accessories
Optical compartment protected against impact and dust
Sliding suspension brackets, distance between brackets
maximum 4 000 mm
Mechanical junction without tools
Weight: approx. 4 kg (2000 mm), 8 kg (4000 mm)
Standards housing lengths: 2 000 mm, 4 000 mm
Driver(s): Fixe, Convertisseur à gradation DALI (CDIMMDALI)
Option(s): Lighting sensor and-or movement detection (CEL),
Autonomous Security Lighting Unit (BAES)
Photobiological risk group 0

Type of lighting Général
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 4000 K
Mounting type Suspendu
IP 20
