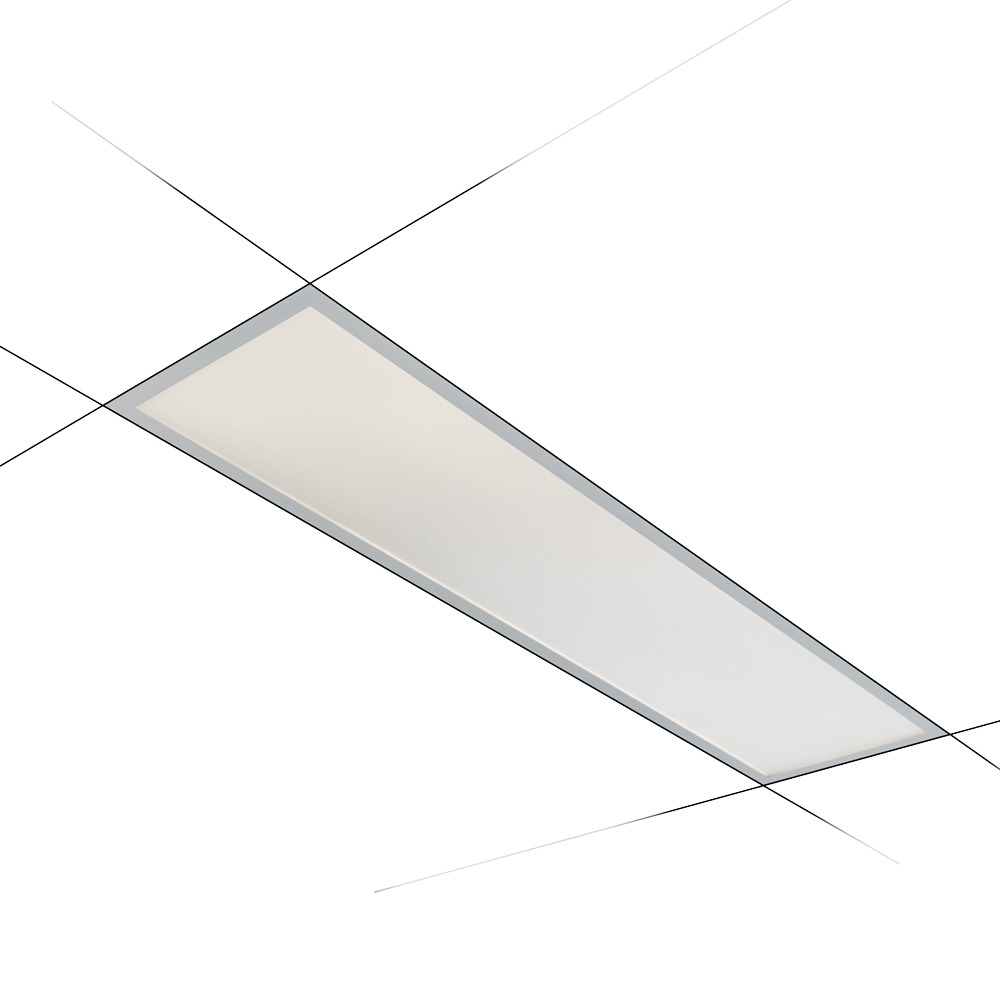

LE 2316-C LED
Recessed luminaire for LINEAR LED module, maximum 4357 lumens
Color(s) :
Norms : Class II | IP 40 | 650°
Driver(s) :
/Convertisseur_FIXE.JPG){kind=small}
/Convertisseur_DALI.jpg){kind=small}
Efficiency Energy Class : F

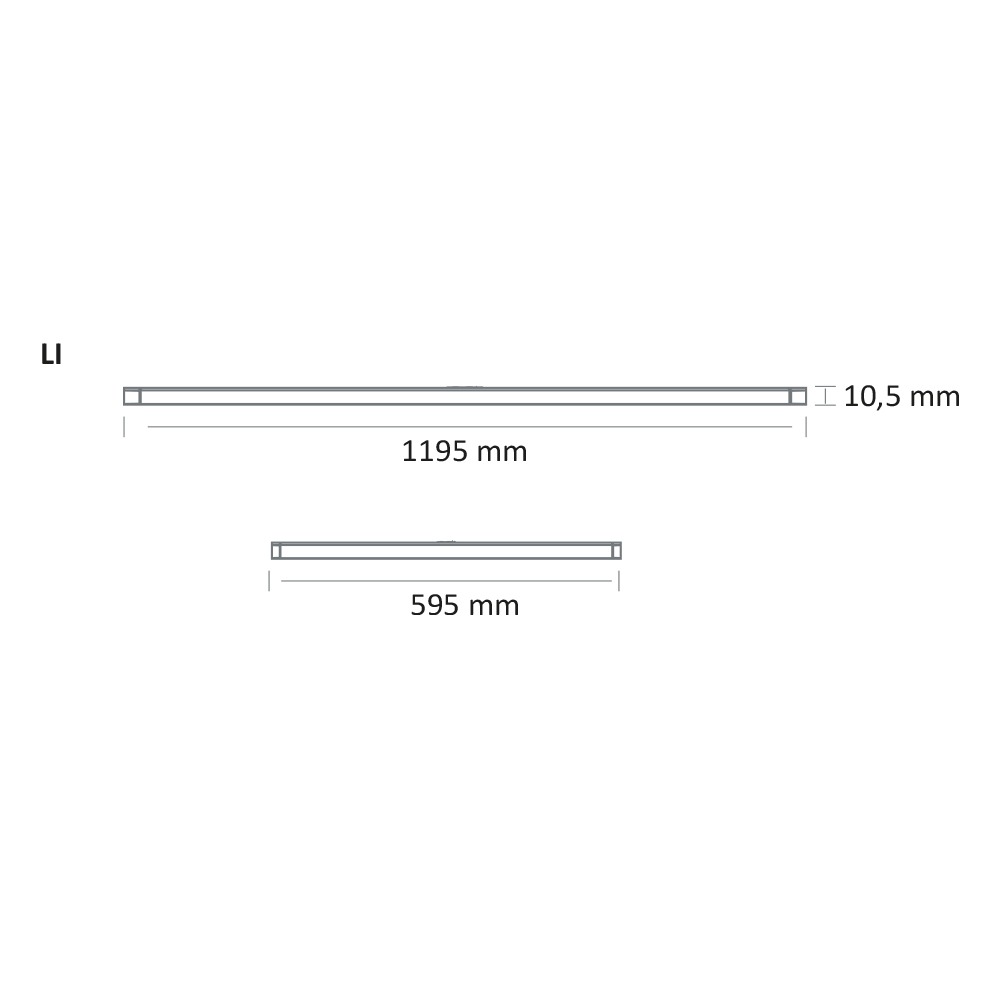

Recessed cut out :
Download the technical sheet:
Recessed luminaire for LINEAR LED module, maximum 4357 lumens
CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K, 3 500 K, 4 000 K and 6 500 K
50 000 hours lamp life (L80B20)
Luminous efficiency of system up to 106 lm/W
Micro prismatic Diffuser
Lay-in (LI)
Housing made of painted steel
Static heat sink
UGR < 19
Weight: approx. 2,8 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): IP 65 built-in frame, Ready-to-mount kit (security wire, protection film) (KC)
| Type of lighting | Général |
| Application domain | Retail / magasins, GSA, GSS, Bureaux, Hôtellerie |
| Color temperature | 3000 K, 3500 K, 4000 K, 6500 K |
| Mounting type | Encastré |
| IP | 40 |
