Product | Suspended Luminaires
LS 2371 LED
Suspended luminaire for LED module, maximum 65 780 lumens

Color(s) :

Norms : Class I | IP 40 | 950°

Driver(s) :

Efficiency Energy Class : C
Recessed cut out :

Download the technical sheet:

CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 4 000 K
70 000 hours lamp life (L90B10)
Luminous efficiency of system up to 95,6 lm/W
Housing made of extruded aluminium
Opal (DO) diffuser made of opal silicone
Static heat sink
Weight: approx. 3,4 kg (455 mm), 8,5 kg (1136 mm), 14,6 kg (1853 mm), 23,3 kg (2926 mm), 45,1 kg (5789 mm)
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): Fast connector (CORD), Acoustic panel and foam (Ø455, Ø777 et Ø1136)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 4000 K
Mounting type Suspendu
IP 40

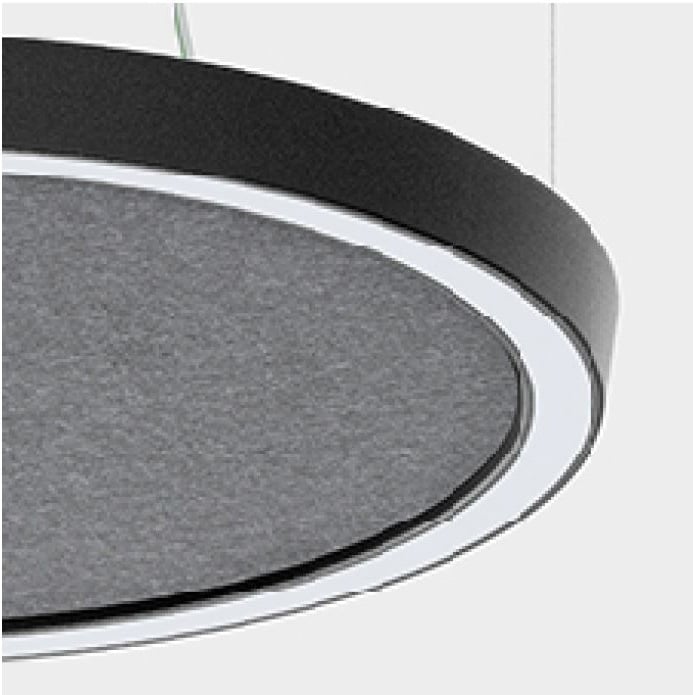

Acoustic panel

Acoustic foam
