Product | Track Lighting Luminaires | General Lighting - Led Lighting Fixtures | Éclairage Général – Appareils Led
LS 3976 LED
Rail hanging light for LED LINEAR module, maximum 12 600 lumens

Color(s) :

Norms : Class I IP 20 | 650° | IK 10 | RG0

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

Track suspended luminaire for LINEAR LED module, maximum 12 600 lumens
CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L90B10)
Luminous efficiency of system up to 183,3 lm/W
3 circuits track adaptor
Housing made of prelacquered steel
Cluster optical with lens, made of polycarbonate (PC)
Endcaps made of injected polycarbonate
Static heat sink
Optical compartment protected against shocks and dust

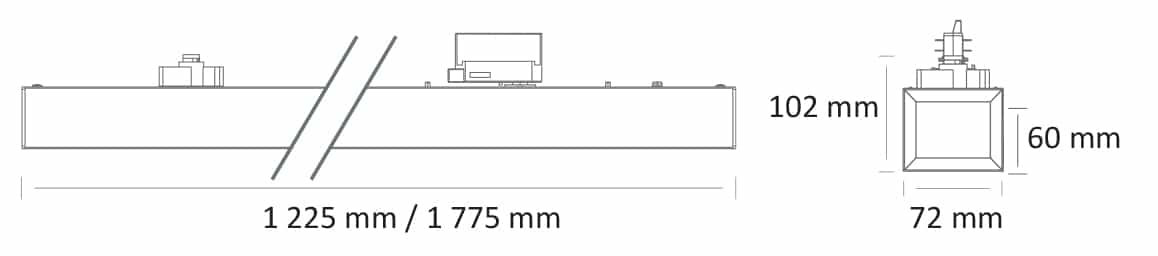

Weight: approx. 3 kg (1225 mm), 4,5 kg (1775 mm)
Standard length: 1 225 or 1 775 mm
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s):Asymmetrical (ASY), Asymmetrical Double (DASY)
Photobiological risk group 0

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20

Similar Products


LS 3976 LED

LS 3954 LED

LS 5076 LED

Finalised Projects

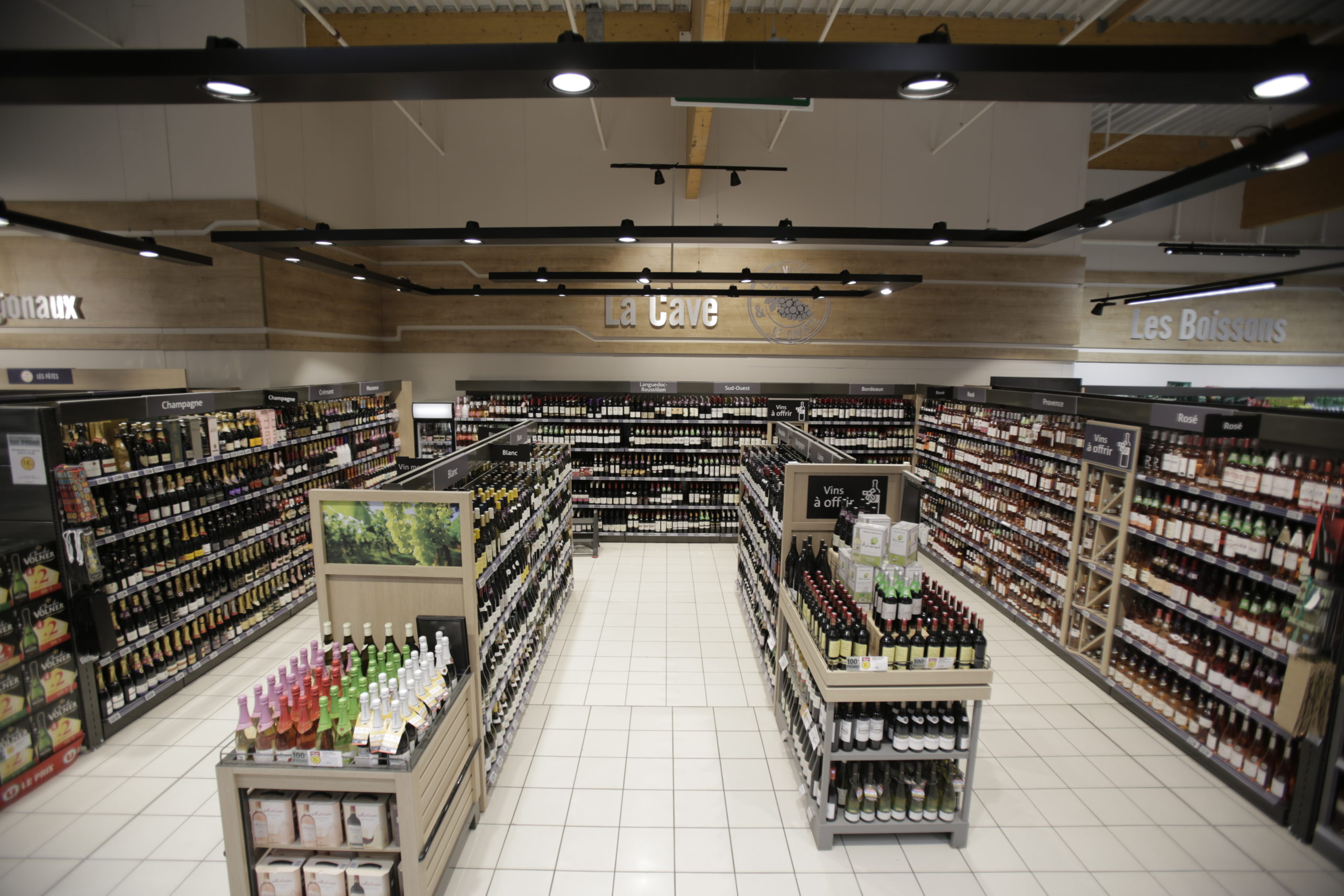

Shop lighting | Large Scale Food Stores
