LS 5076 LED
Rail hanging light for LED LINEAR module, maximum 11,978 lumens

Color(s) :

Norms : Class I IP 20 | 650° | IK 10

Light distribution :

Driver(s) :

Efficiency Energy Class : A++

Download the technical sheet:

  • Rail hanging light for LED LINEAR module, maximum 11,978 lumens
  • CRI of 80
  • MacAdam Ellipse: 3 SDCM
  • Available in 3,000K, 3,500K and 4,000K
  • Lifespan 50,000 hours (L90B10)
  • System light efficiency up to 175.5 lm/W
  • 3-ignition rail adapter
  • Prelaminated steel sheet body
  • Opal polycarbonate diffuser (DO)
  • Injected polycarbonate optical block tips
  • Static heat sink
  • Optical compartment protected from shocks and dust

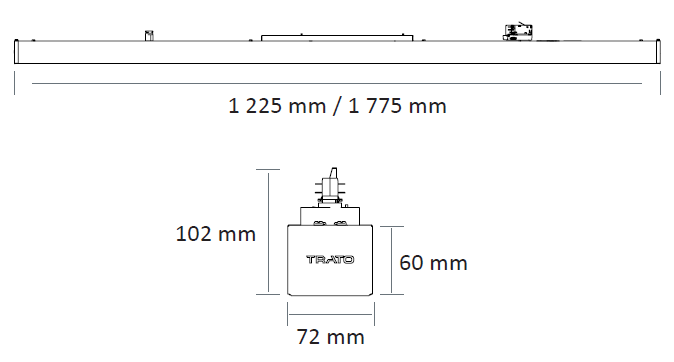

  • Weight: approx. 3 kg (1225 mm), 4.5 kg (1775 mm)
  • Standard body length: 1,225 or 1,775 mm
  • Converter: Fixed, DALI Gradation Converter
    (CDIMMDALI)
  • Options: Asymmetrical (ASY)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 3500 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20
