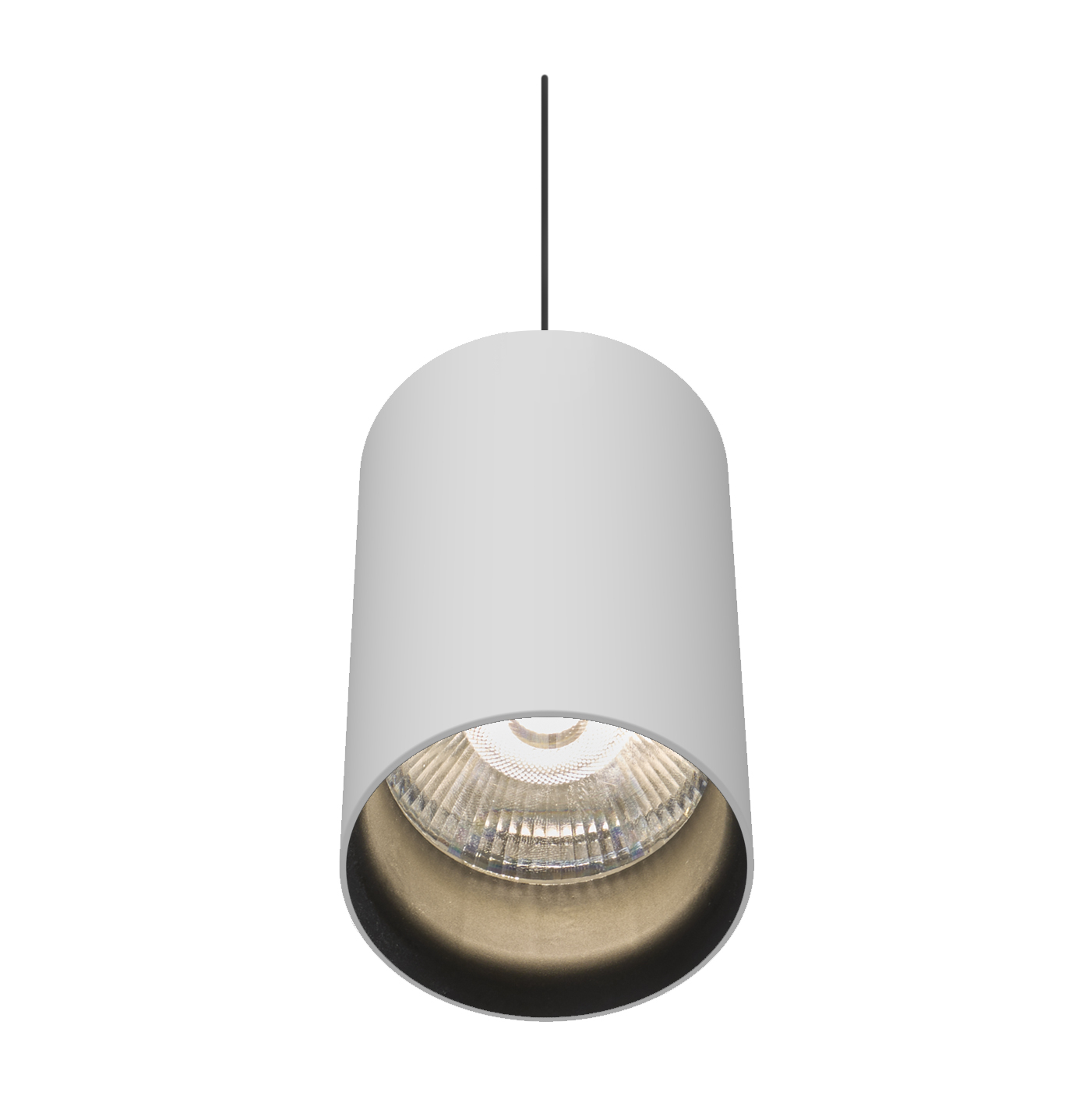

Product | High Bay
AR 5140-B LED ICOB
High bay for LED SPOT module, maximum 3 751 lumens

Color(s) :

Norms : Class I | IP 20 | 650° | RG1

Beam(s) :

Driver(s) :

Efficiency Energy Class : E
Recessed cut out :

Download the technical sheet:

High bay for LED SPOT module, maximum 3 751 lumens
CRI de 90
MacAdam Ellipse : 2 SDCM
Available in 3 000 K, 3 500 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 152,7 lm/W
Housing and box made of die-cast painted aluminium
Polycarbonate lens optics
Weight : Approx. 0,9 kg
Driver(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Photobiological risk group 1

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 3500 K, 4000 K
Mounting type
IP 20

ICOB version

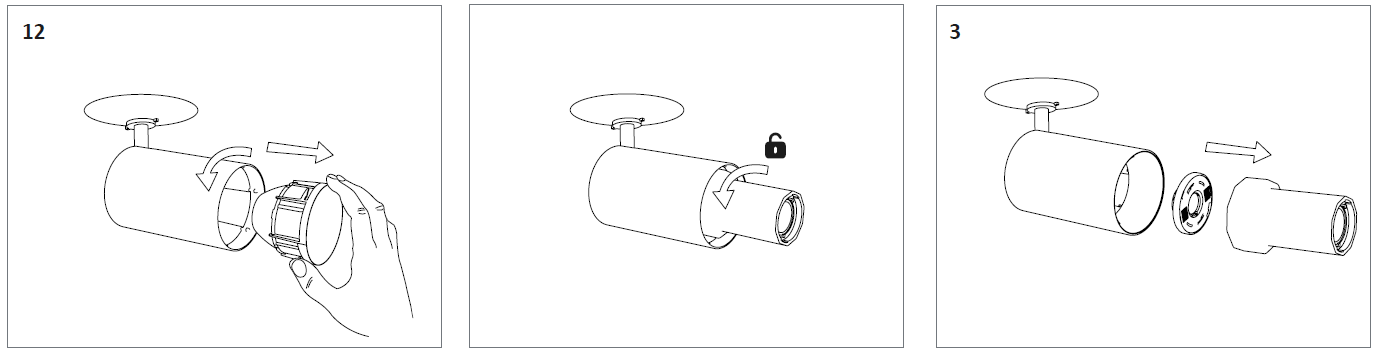

A product equipped with ICOB technology is provided with a mechanism enable to change the module on the GH36d-4 socket by a simple quarter-turn rotation.
