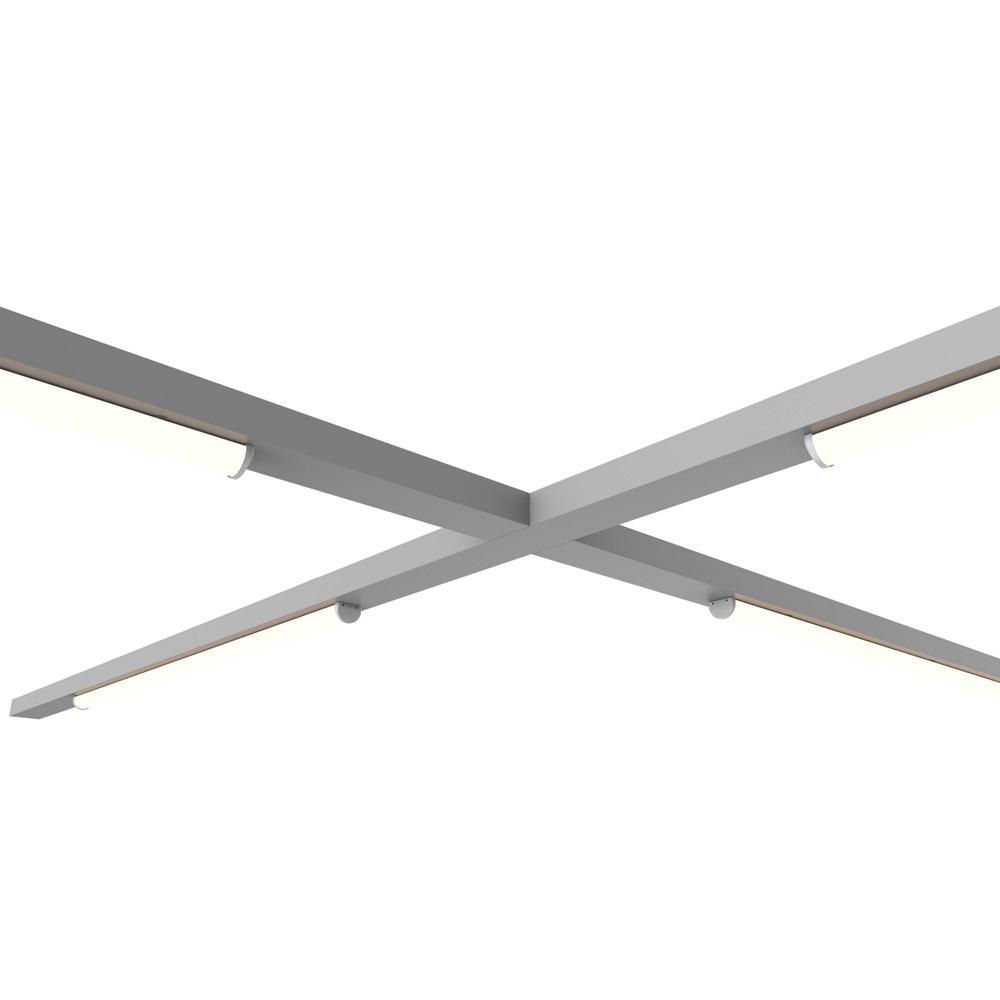

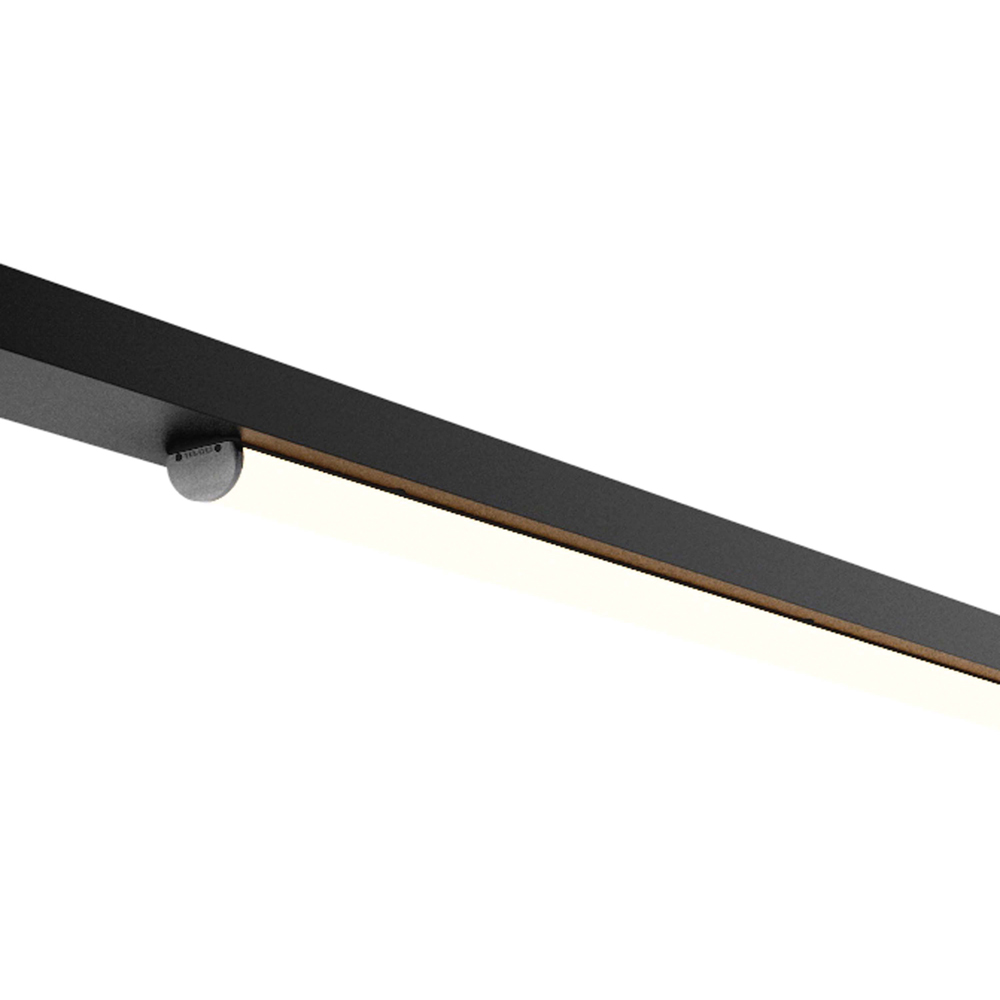

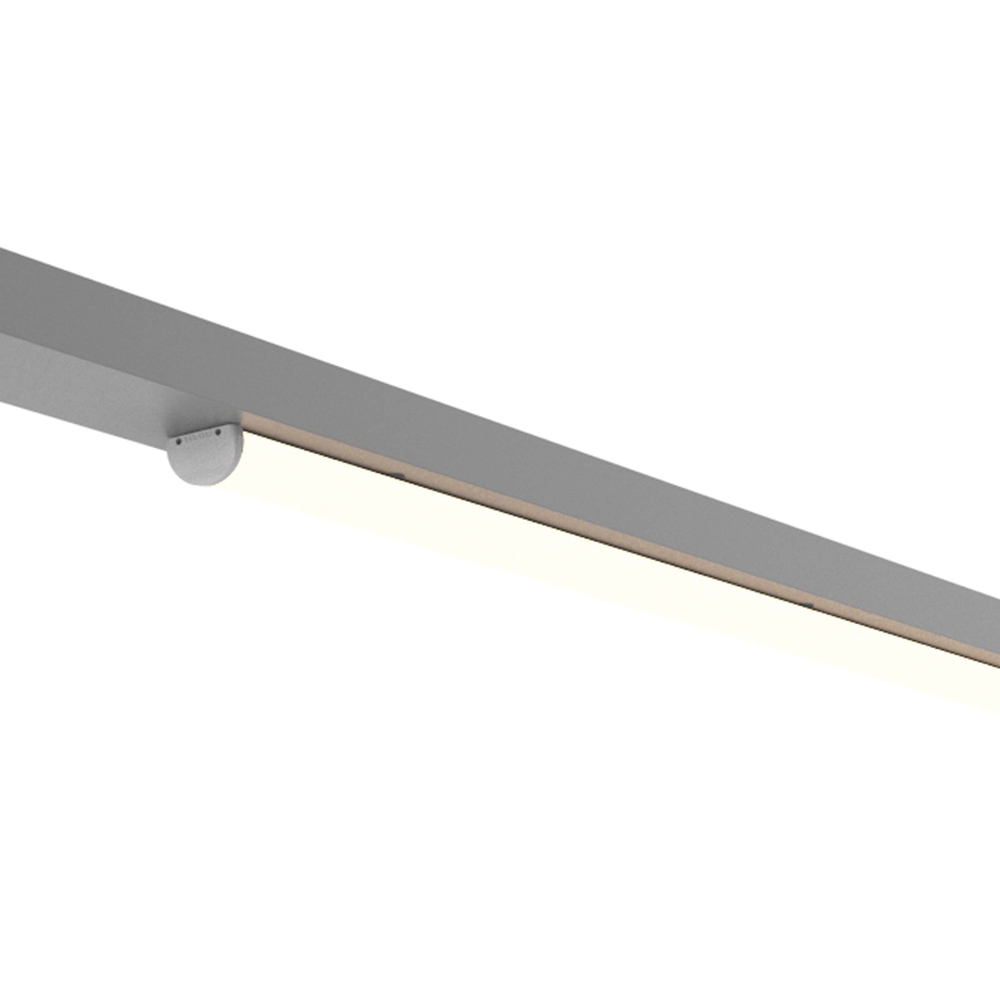

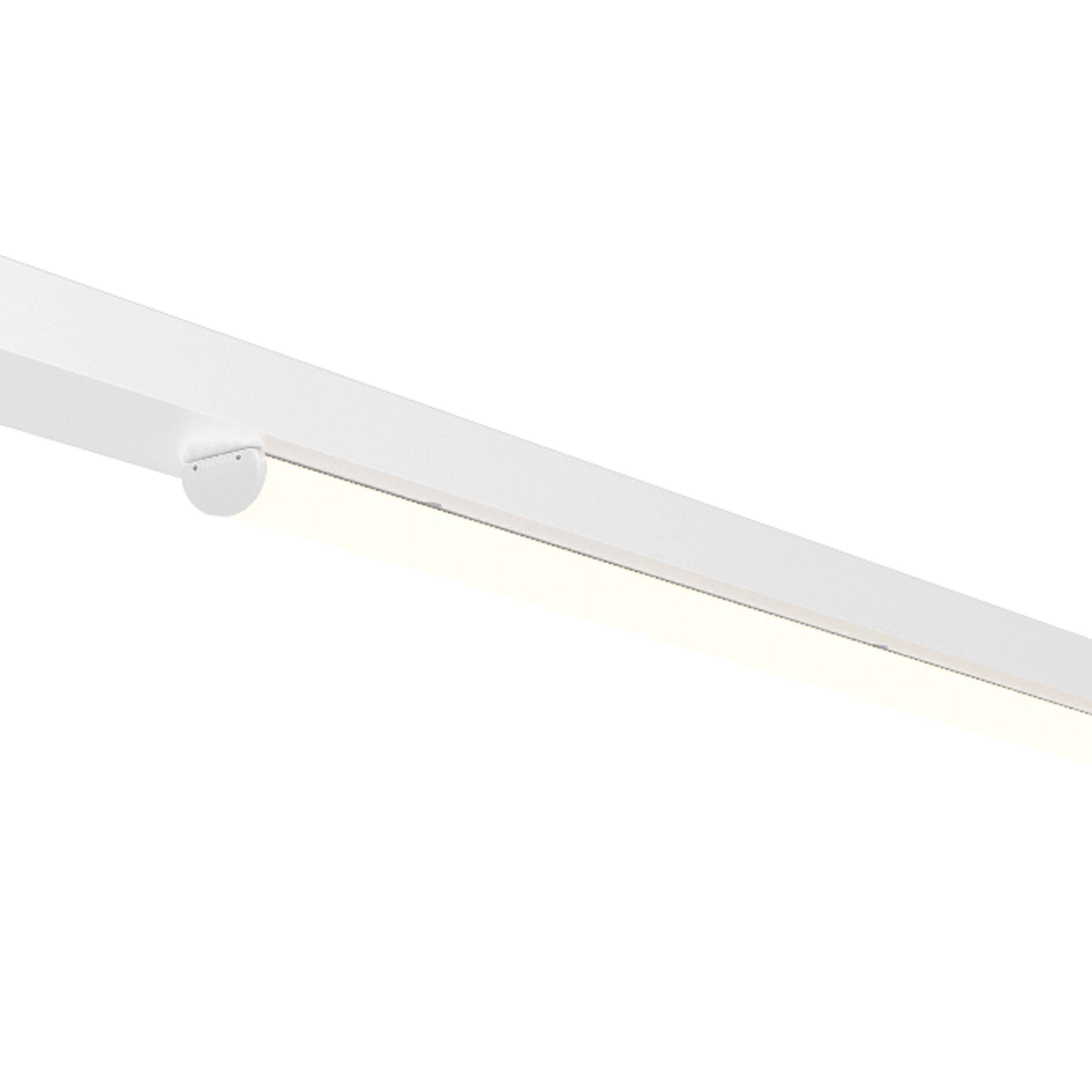

System lighting for LINEAR LED module, maximum
16502 lumens
MacAdam Ellipse: 3 SDCM
Available in 3 000 K et 4 000 K
50 000 hours lamp life (L80B20)
Luminous efficiency of system up to 177,3 lm/W
Housing made of prelacquered steel
High output of the optical, coextruded with prism, grooved,
made of polymethyl methacrylate (PMMA)
The end caps of the optical system are made of injected
polycarbonate
Endcap, screen suspension bracket and junction plate
available in accessories
Static heat sink with an aluminium profile
Dust-proof optical compartment (IP 60)
Easier maintenance thanks to extractable optical system
without tools
Sliding suspension bracket, interaxial maximum 3 000 mm
Mechanical junction without tools
Weight: approx. 3,46 kg for standard width
Standards housing lengths: 2 880 mm (carried), 3 000 mm
(carrier)
Driver(s): Fixed, Dimmable DALI (CDIMMDALI), Casambi,
Connect
Option(s): Lighting sensor and-or movement detection (CEL),
Carrying element for 3-circuit tracks (3A), Steel white louvre (GLB)
