Product | Gridded Systems

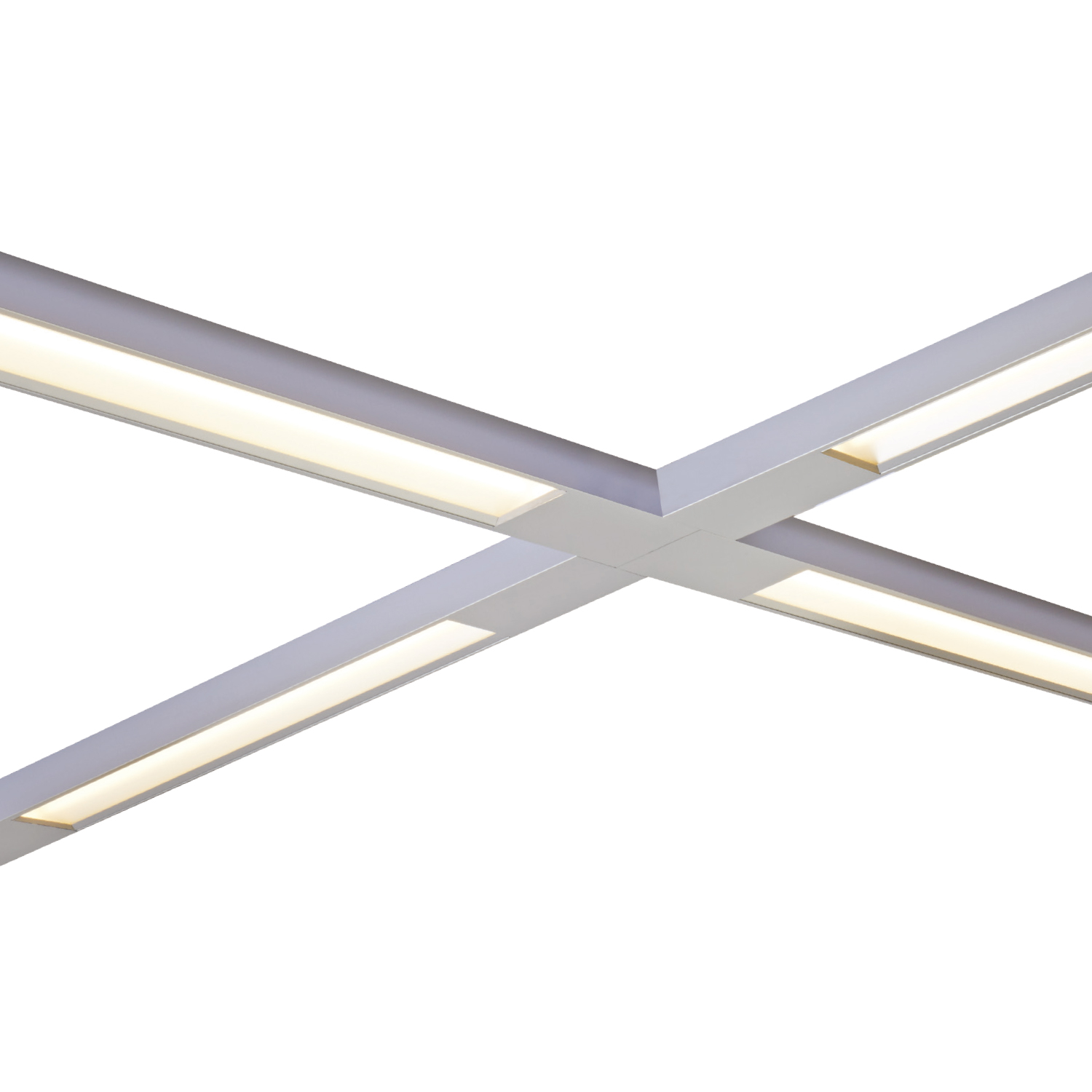

RS 3936 LED
Lighting system for LINEAR LED module, maximum 16 800 lumens

Color(s) :

Norms : Class I | IP 20 (luminaire) / IP 40 (optical) | 650°

Light distribution :

Driver(s) :

Efficiency Energy Class : C
Recessed cut out :

Download the technical sheet:

Lighting system for LINEAR LED module, maximum
16 800 lumens
MacAdam Ellipse: 3 SDCM
Available in 3 000 K et 4 000 K
50 000 hours lamp life (L80B20)
Luminous efficiency of system up to 175,7 lm/W
Housing made of prelacquered steel
Optical made of polymethyl methacrylate (PMMA)
The end caps of the optical system are made of injected
polycarbonate
Endcap and screen suspension bracket and junction plate
available in accessories
Static heat sink
Sliding suspension bracket, interaxial maximum 2 000 mm
Weight: approx. 8 kg for standard width
Standards housing lengths: 1 815 mm, 2 000 mm
Driver(s): Fixed, Dimmable DALI (CDIMMDALI), Camsambi,
Connect
Option(s): Lighting sensor and-or movement detection (CEL),
Carrying element for 3-circuit tracks (3A)

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 4000 K
Mounting type
IP 20
