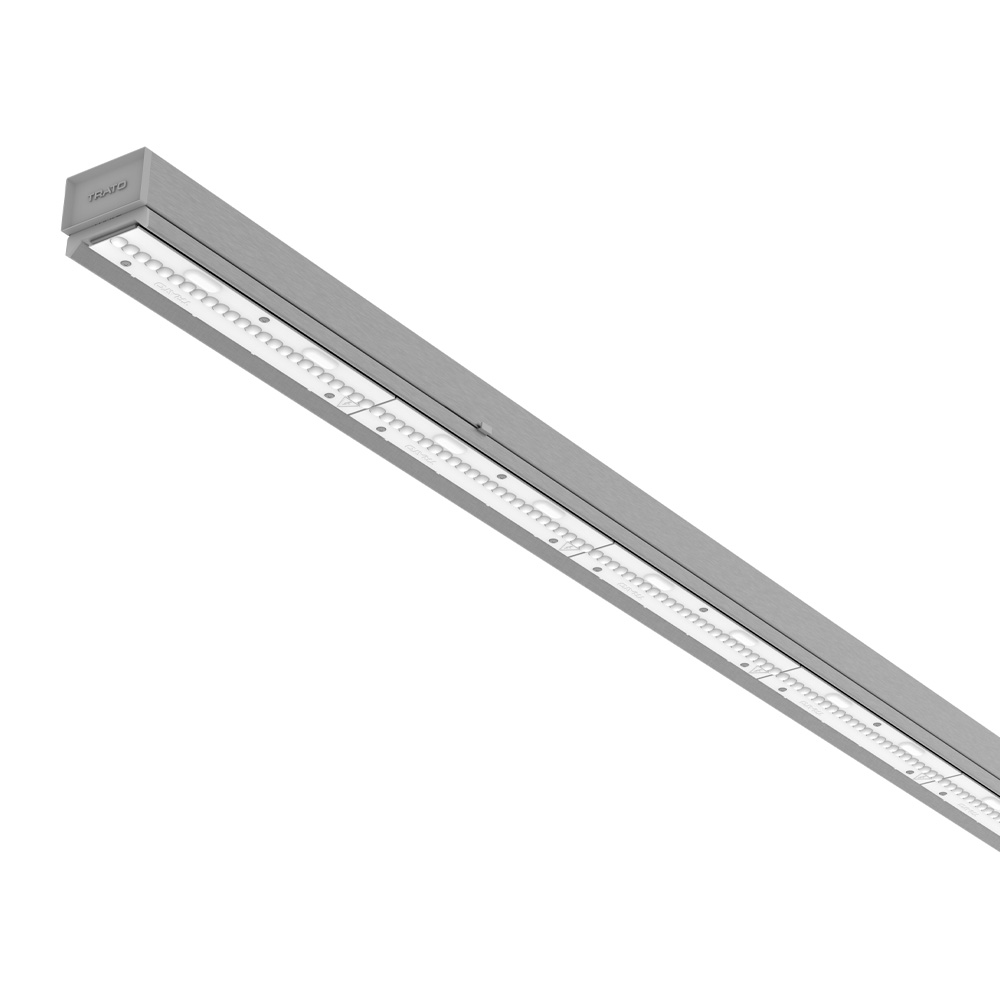

Suspended continuous row lighting for LINEAR LED module,
maximum 12 750 lumens
CRI of 80
MacAdam Ellipse : 3 SDCM
Available in 3 000 K and 4 000 K
Middle flux module 100 000 hours lamp life (L80B10), 50 000h (L90B10)
High flux module 100 000 hours lamp life (L90B10)
Luminous efficiency of system up to 186,5 lm/W
Available in single module, in continuous row or discontinuous row lighting
Housing made of prelacquered steel
Cluster optical with lens, made of polycarbonate (PC)
Static heat sink
Optical compartment protected against shocks and dust
Mechanical junction without tools
Trunking length : 1700 mm and 3400 mm
Board length : 1700 mm
If built-in sensor: trunking length 1800 mm et 3500 mm
Board length with sensor : 1800 mm
Driver(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Accessories : Line departure kit, suspension bracket, socket supply kit,
closing cover
Option(s) : Lighting sensor and-or movement detection (CEL),
Independent Unit lighting Security (BAES), Possibility of adding a socket on
the shaft or a spotlight
Photobiological risk group 0
ENEC-labelled module and converter
Red rendering (R9) : R9>50 ( High flux ), R9>0 ( Middle flux )
