Product | Orientable and Adjustable
EO 5056-B LED D120

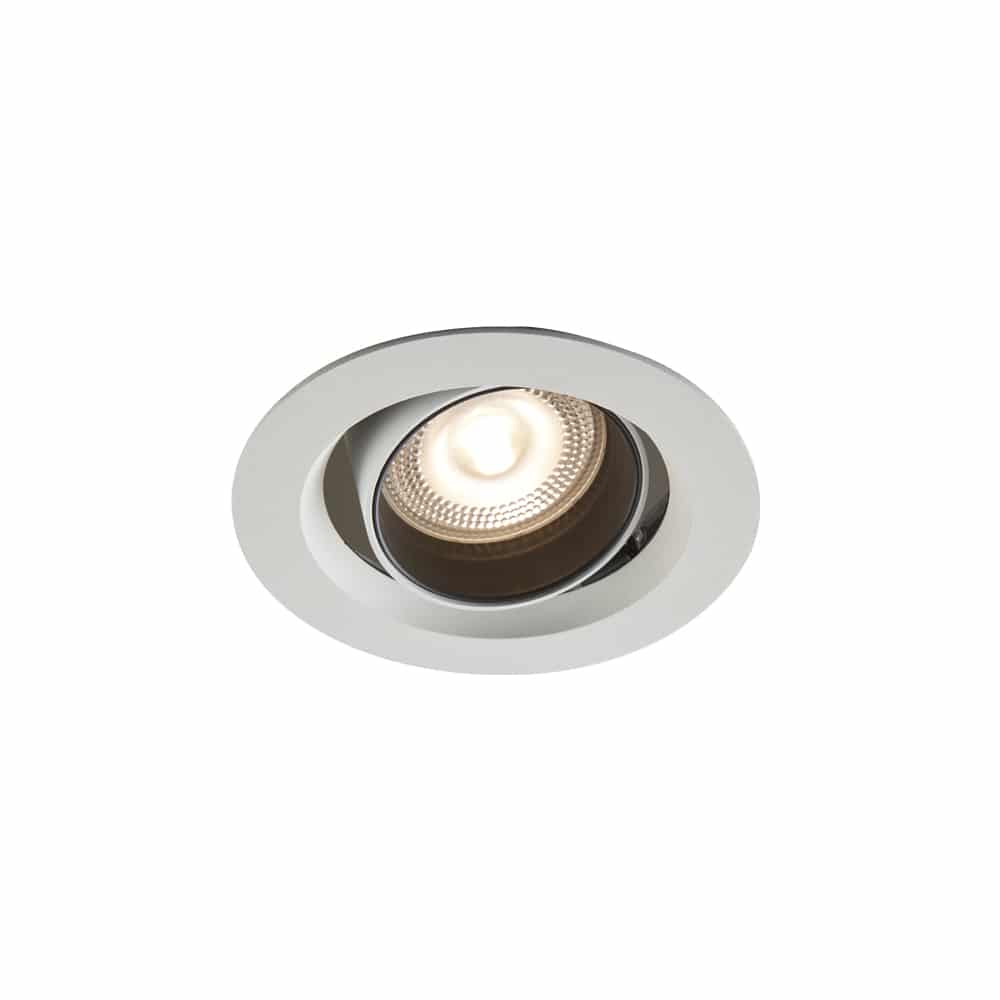

Circular recessed orientable spotlight for LED SPOT module, maximum 4 685 lumens

Color(s) :

Adjustable :

Norms : Class I IP 20 I 650 degrees

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E

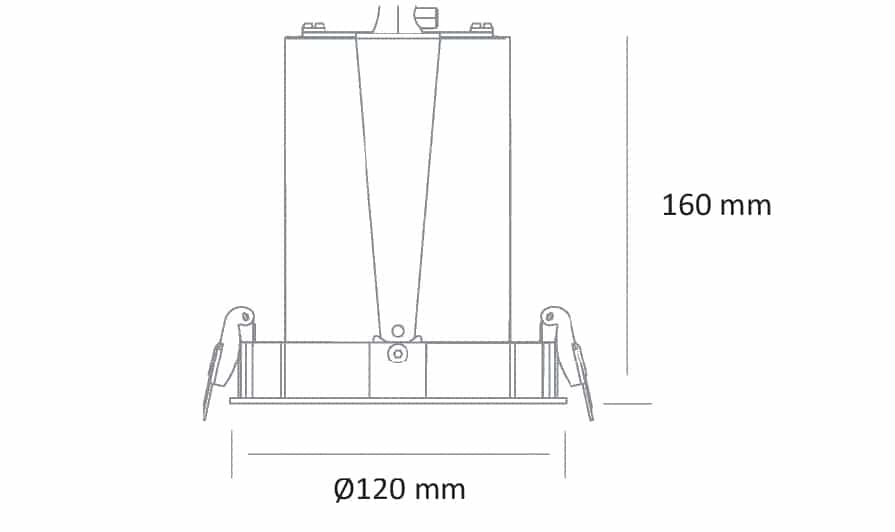

Recessed cut out :
Ø114 mm

Download the technical sheet:

CRI of 80 or 90
MacAdam Ellipse: 3 SDCM
Available in 2500 K, 3 000 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 145,5 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Static heat sink
Polycarbonate lens
Weight: Approx. 1 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): Fast connector (CORD)

Type of lighting Accentuation
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2500 K, 3000 K, 4000 K
Mounting type Encastré
IP 20
