Product | High Bay

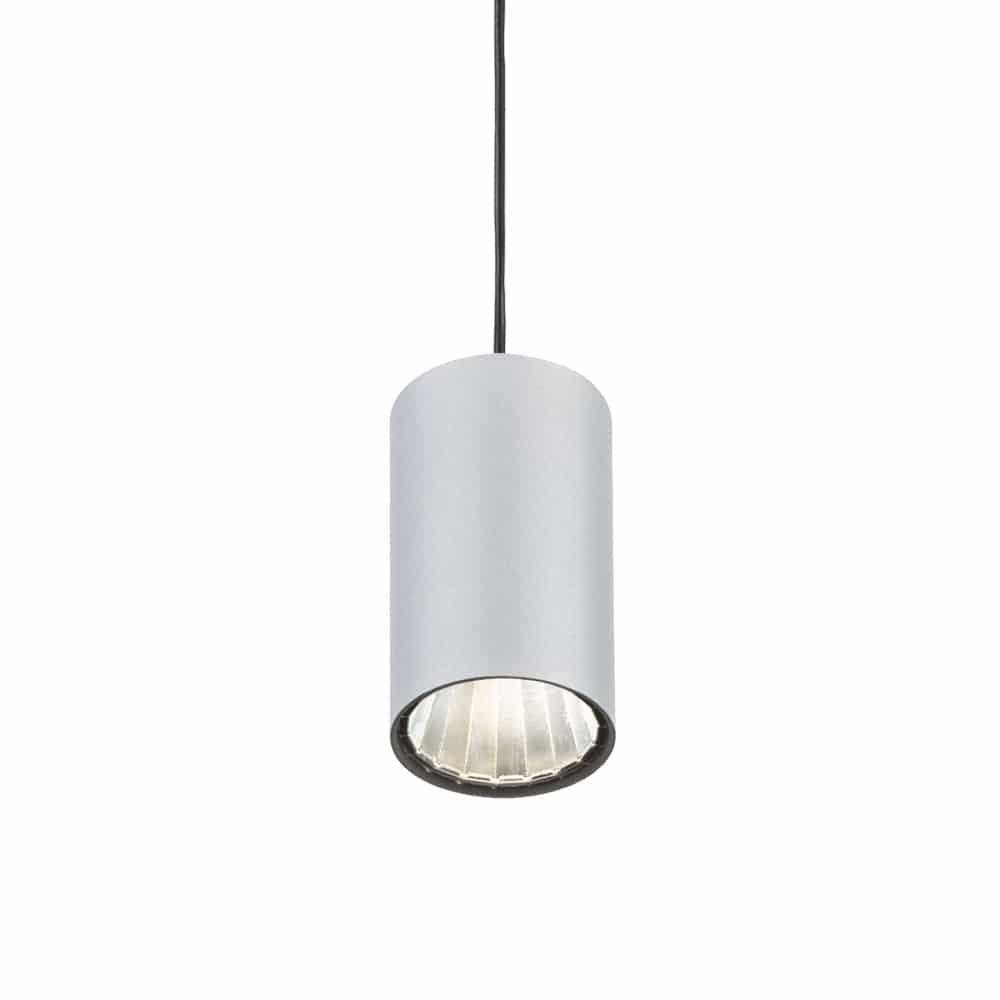

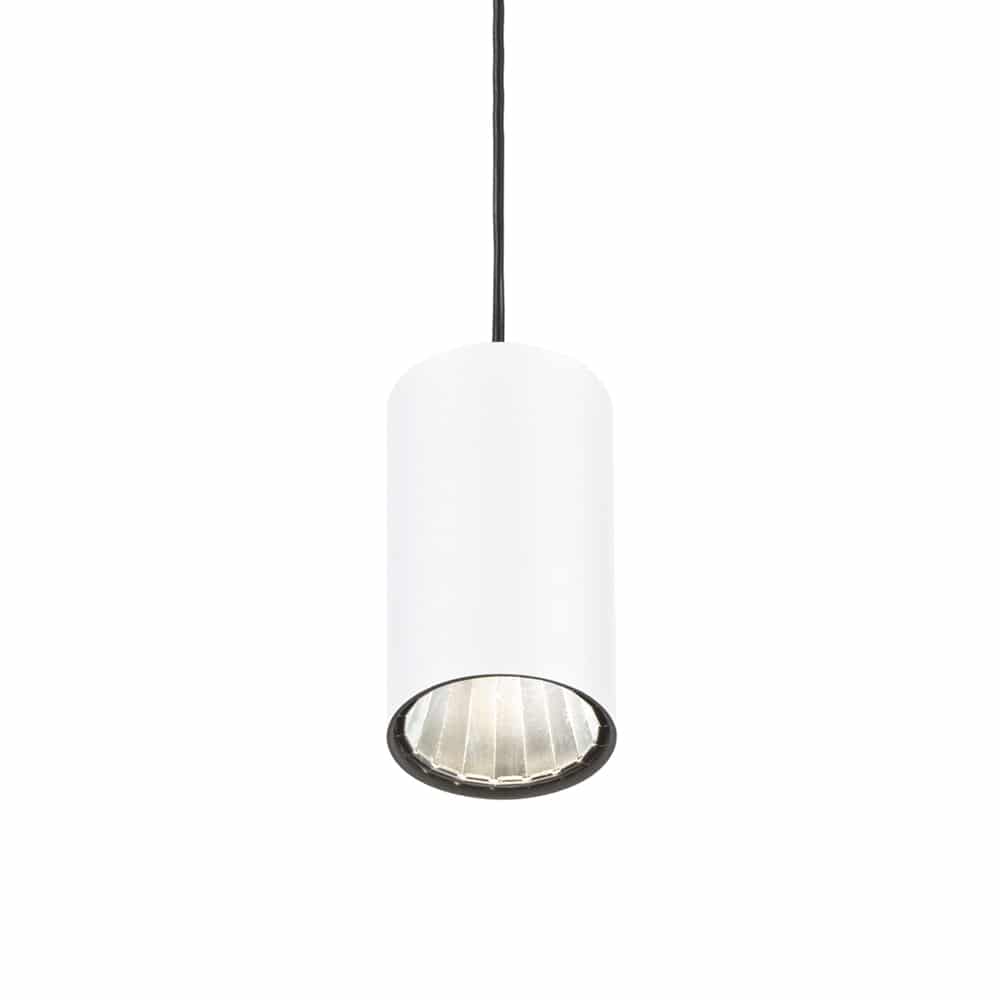

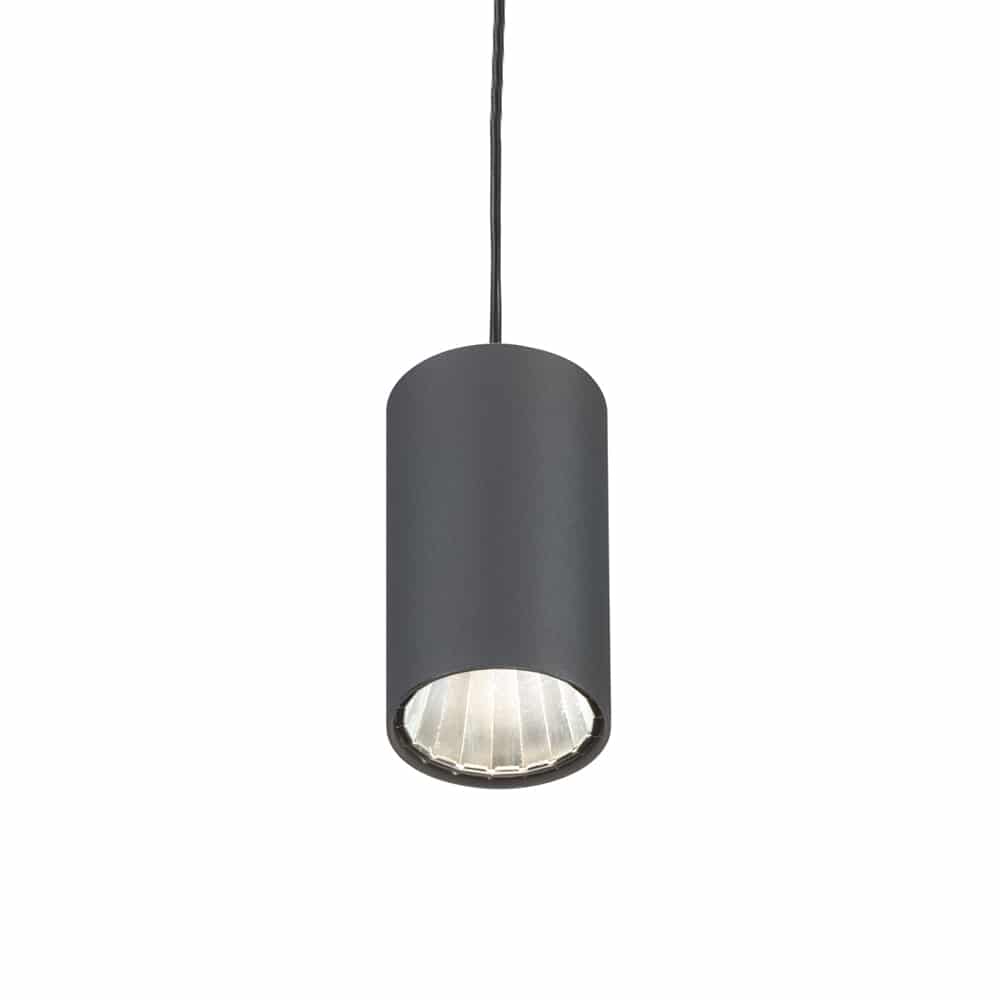

AR 5056-A-B-C LED
High bay for LED SPOT module, maximum 3 949 lumens

Color(s) :

Norms : Class I | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E
Recessed cut out :

Download the technical sheet:

  • High bay for LED SPOT module, maximum 3 949 lumens
  • CRI of 80 or 90
  • MacAdam Ellipse: 3 SDCM
  • Available in 2 500 K, 3 000 K and 4 000 K
  • 50 000 hours lamp life (L80B10)
  • Luminous efficiency of system up to 145,7 lm/W
  • Housing and box made of die-cast painted aluminium
  • Static heat sink
  • Weight: approx. 0,9 kg
  • Driver(s) : Fixed, Dimmable driver DALI (CDIMMDALI)
  • Option(s) : Opaline tube, length 1,5 m

Type of lighting Accentuation
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2500 K, 3000 K, 4000 K
Mounting type Suspendu
IP 20
