Product | Micro-lens / reflectors

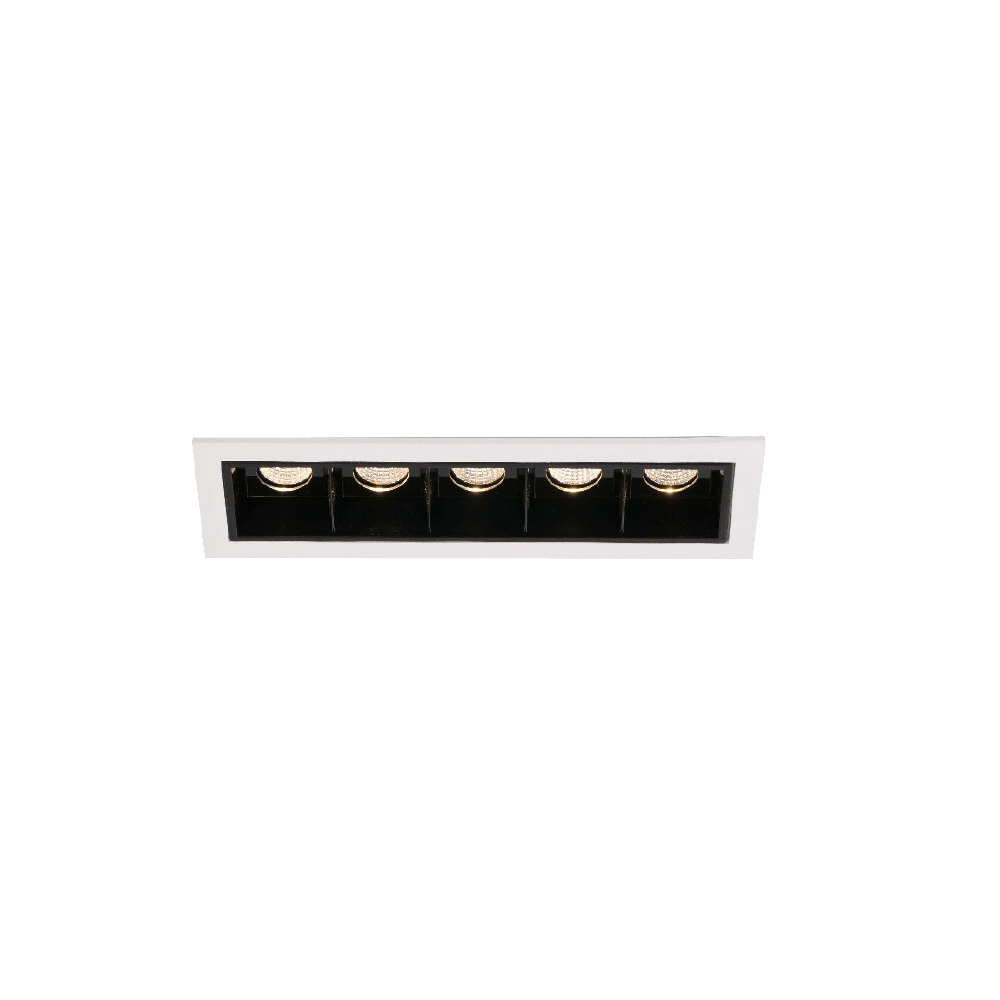

DL 2820 LED
Recessed luminaire for LINEAR LED module, maximum 2100 lumens

Color(s) :

Norms : Class III | IP 20 | 650°

Driver(s) :

Efficiency Energy Class :

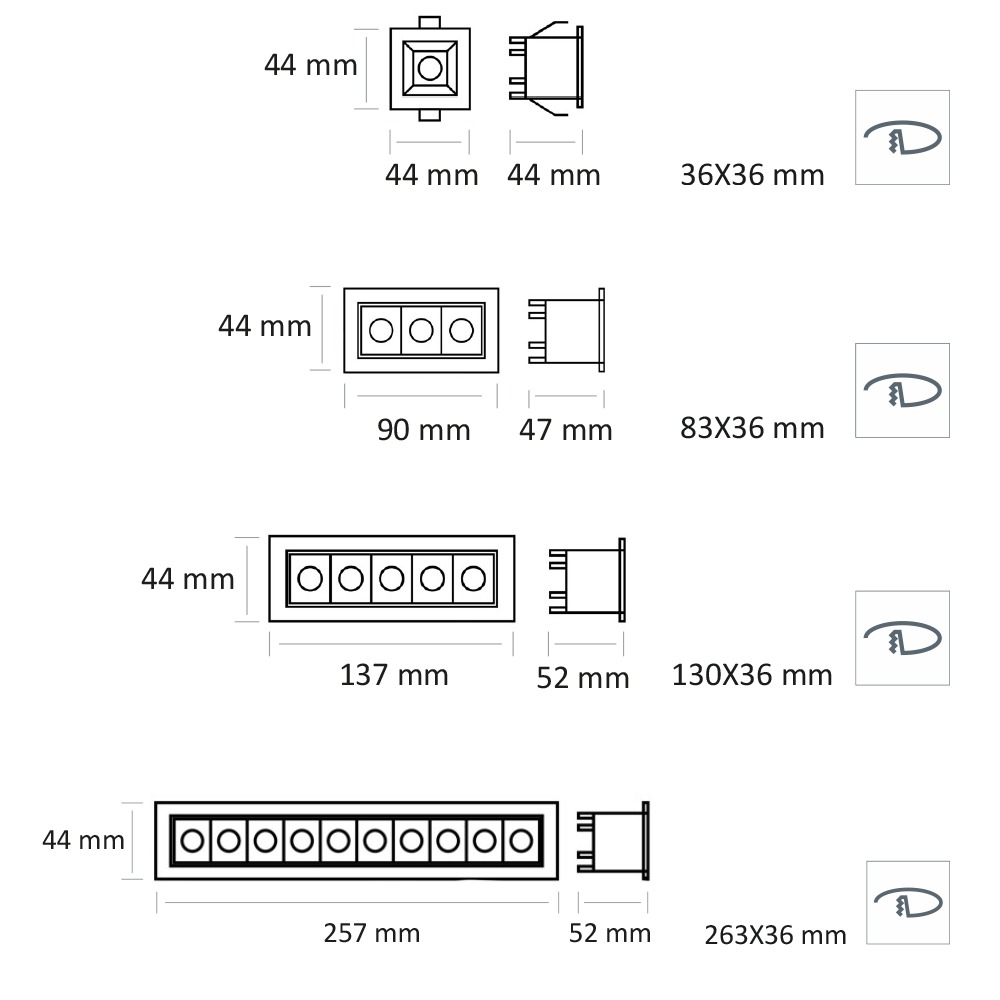

Recessed cut out :
36X36 mm - 83X36 mm - 130X36 mm - 263X36 mm

Download the technical sheet:

CRI of 90
MacAdam Ellipse: 3 SDCM
Available in 3 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 105 lm/W
Housing made of painted steel
Static heat sink
Weight: approx. 0,05 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K
Mounting type Encastré
IP 20
