Product | Orientable and Adjustable
EO 2241-A LED
Circular recessed orientable spotlight for LED SPOT module, maximum 7 700 lumens
Color(s) :
Adjustable :
Norms : Class I IP 20 650°
Beam(s) :
Driver(s) :
/Convertisseur_FIXE-GB.jpg){kind=small}
/Convertisseur_DALI.jpg){kind=small}
Efficiency Energy Class : D

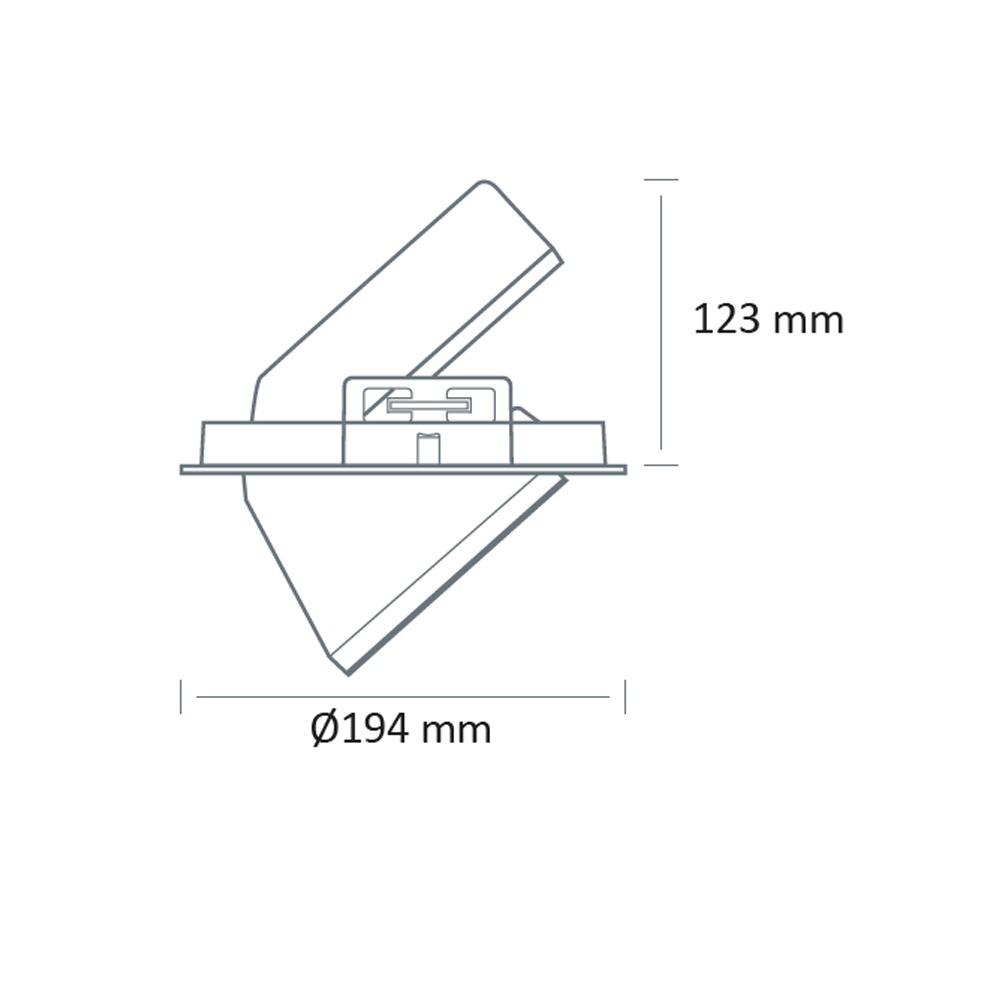

Recessed cut out :
Ø180 mm
Ø180 mm
Download the technical sheet:
CRI of 80 or 90recessed led spot
MacAdam Ellipse: 2 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 151,2 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Static heat sink
Weight: Approx. 1,8 kg
Driver(s): Fixe (C Fixed), Dimmable driver DALI (CDIMMDALI)
Option(s): Fast connector (CORD)
| Type of lighting | Accentuation |
| Application domain | Retail / magasins, GSA, GSS, Bureaux, Hôtellerie |
| Color temperature | 3000 K, 4000 K |
| Mounting type | Encastré |
| IP | 20 |
