Product | Orientable and Adjustable
EO 5140-3B LED

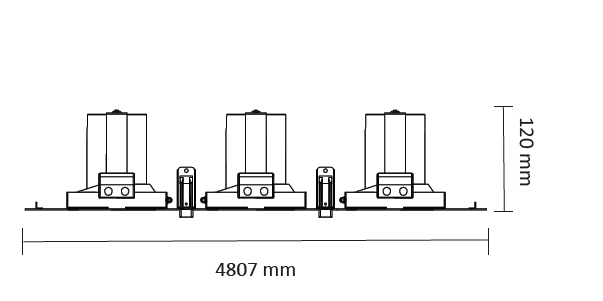

Ceiling mounted luminaire for LED SPOT module, up to 3x4 419lumens

Color(s) :

Adjustable :

Norms : Class I | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E
Recessed cut out :
530x180mm

Download the technical sheet:

Ceiling mounted luminaire for LED SPOT module, up to 3×4 419 lumens
MacAdam Ellipse : 2 SDCM
CRI of 80 or 90
Available in 2 700 K, 3 000 K, 3 500 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 152,5 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Polycarbonate lens optics
Weight : Approx. 1,3 kg
Driver(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Option(s) : Fast connector (CORD)
Photobiological risk group 1

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2700 K, 3000 K, 3500 K, 4000 K
Mounting type Encastré
IP 20
