Product | Track Lighting Luminaires | General Lighting - Led Lighting Fixtures
LS 3954 ASY LED
Asymmetric rail-suspended light for LED LINEAR module, maximum 10,790 lumens

Color(s) :

Norms : Class I IP 20 (light) / IP 50 (optical) 650 degrees

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

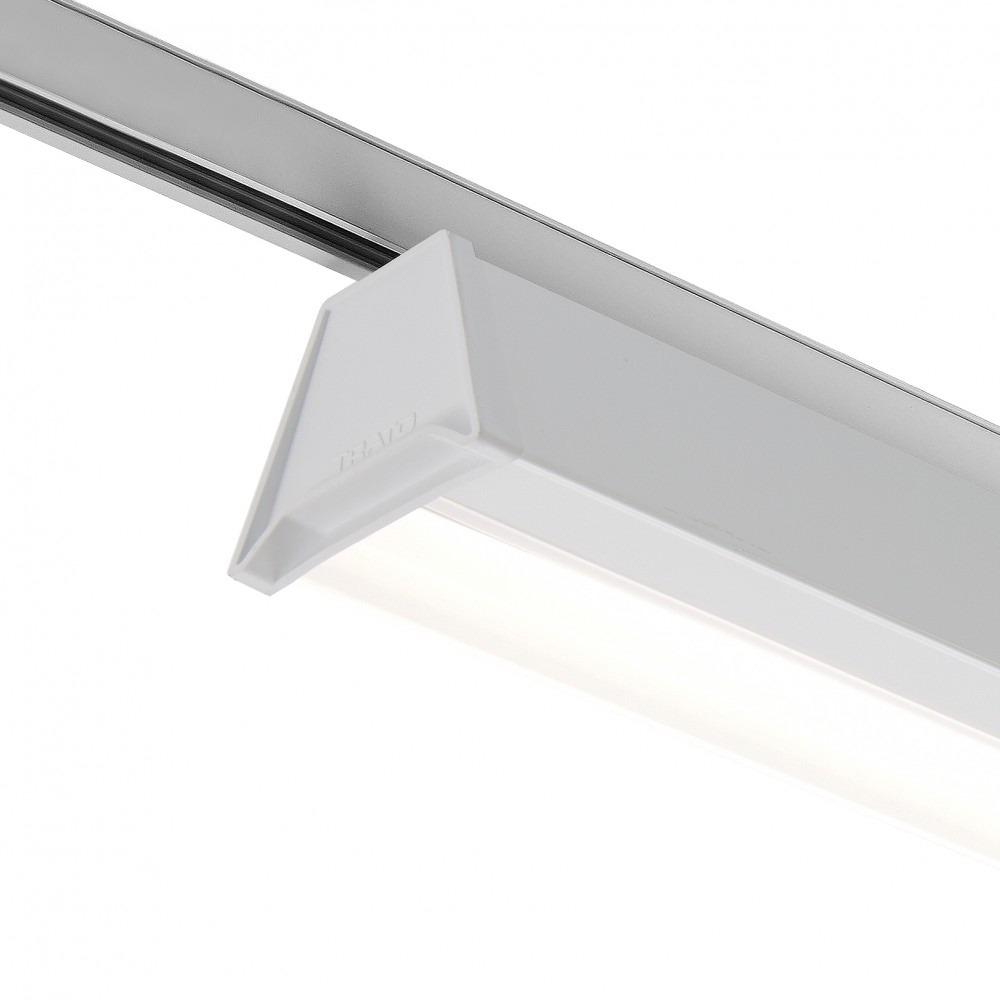

LED light on rail

  • CRI of 80
  • MacAdam Ellipse: 3 SDCM
  • Available in 3,000K, 3,500K, 4,000K and 5,000K
  • Lifespan 50,000 hours (L90B10)
  • System light efficiency up to 158 lm/W
  • 3-ignition rail adapter
  • Prelaminated steel sheet body
  • Diffuse opal (DO) in extruded Plexiglas
  • Injected polycarbonate optical block tips
  • Static heat sink
  • Dust-tight optical compartment (IP 50)

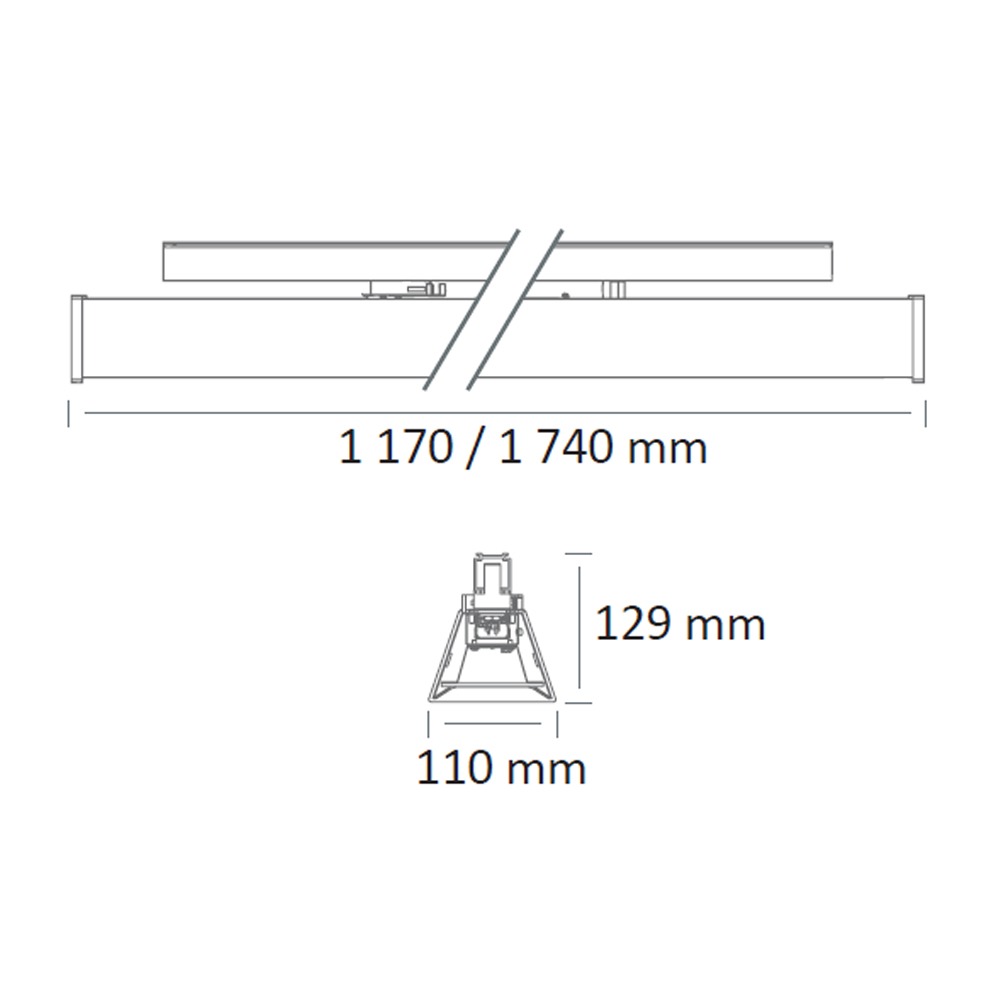

  • Weight: approx. 3.5 kg (1170 mm), 5 kg (1740 mm)
  • Standard body lengths: 1,170 or 1740 mm
  • Converter: Fixed, Converter 1-10 V (1-10V), DALI Gradation Converter (CDIMMDALI)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 3500 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20
