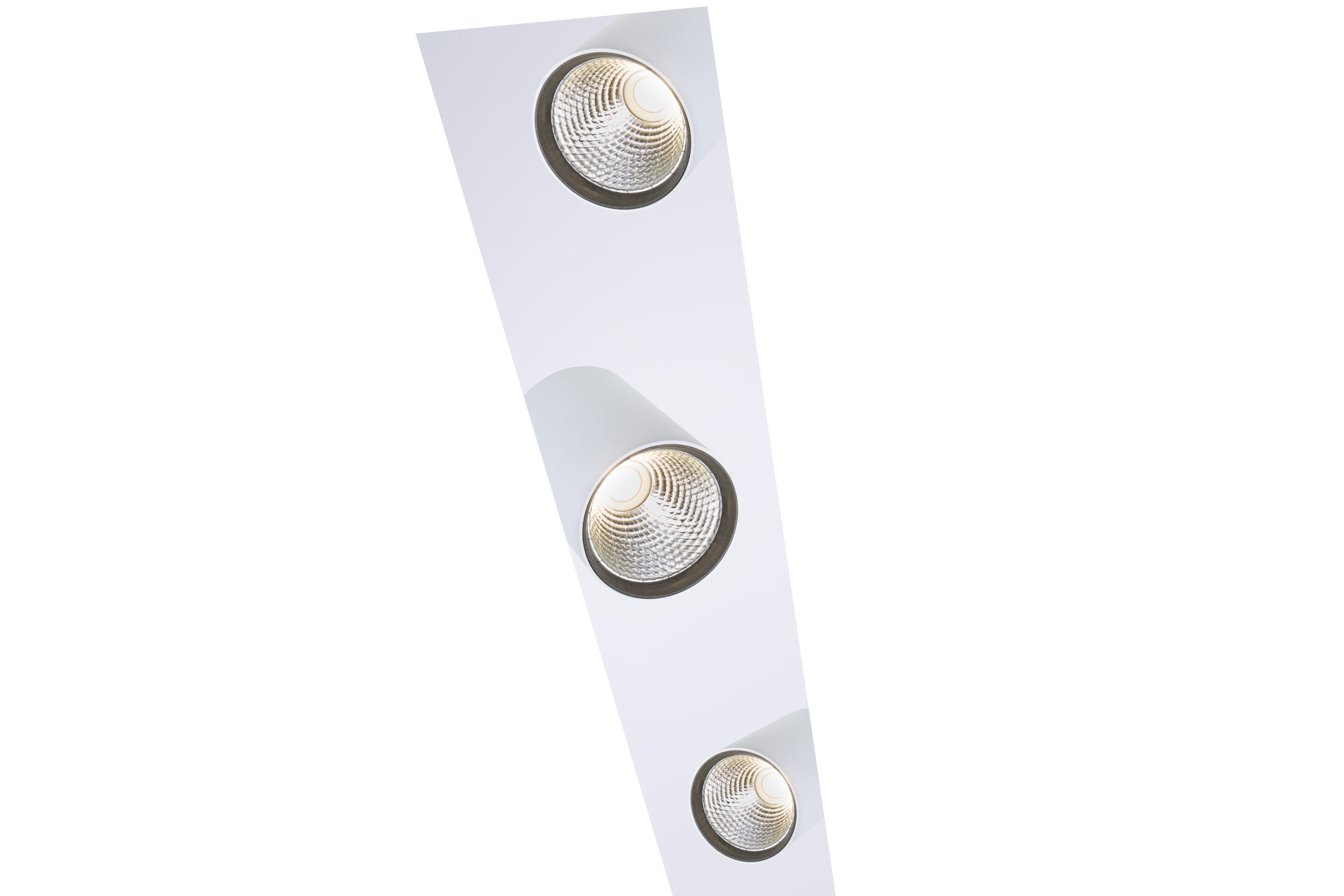

PR 5140-A LED GORGE
Orientable projector for LED SPOT, maximum 4 419 lumens
Color(s) :
Adjustable :
Norms : Class II | IP 20 | 650° | RG1
Beam(s) :
Driver(s) :
/Convertisseur_FIXE.JPG){kind=small}
/Convertisseur_DALI.jpg){kind=small}
/casambi.jpg){kind=small}
/connect.jpg){kind=small}
Efficiency Energy Class : D, E

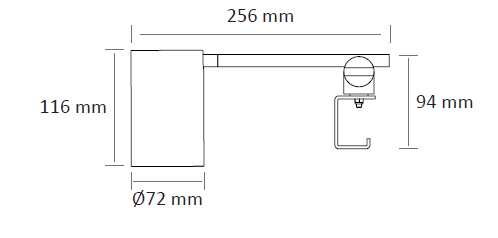

Recessed cut out :
256 mm/ 116 mm
256 mm/ 116 mm
Download the technical sheet:
Orientable projector for LED SPOT, maximum 4 419 lumens
CRI of 80 et 90
MacAdam Ellipse : 2 SDCM
Available in 3 000 K, 3 500 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 152,5 lm/W
3-circuits track adaptor with integrated driver
Head of spot made of die-cast aluminium
Aluminium reflective optics
Weight : Approx. 0,9 kg
Driver(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Option(s) : Elliptical reflector (ELL)
Photobiological risk group 1
| Type of lighting | |
| Application domain | Retail / magasins, GSA, GSS, Bureaux, Hôtellerie |
| Color temperature | 2700 K, 3000 K, 3500 K, 4000 K |
| Mounting type | Sur rail 3 allumages |
| IP | 20 |
