Product | Downlights
DL 3806 LED
Square recessed low luminance downlight for LED DOWNLIGHT module, maximum 5 000 lumens

Color(s) :

Norms : Class I IP 20 I 650 degrees

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E
Recessed cut out :
142x142 mm

Download the technical sheet:

downlight led

  • CRI of 80
    MacAdam Ellipse : 3 SDCM
    High output reflector, made of Miro 4 Silver aluminium
    Available in 3 000 K and 4 000 K
    50 000 hours lamp life (L70B50)
    Luminous efficiency of system up to 90 lm/W
    Springs in pressure for easier installation
    Housing made of die-cast alloy
    Static heat sink made of die-cast aluminium
    Weight: 1,5 kg
    Driver(s): Dimmable driver DALI (CDIMMDALI)
    Option(s): Fast connector (CORD), Safety glass IP 44

Type of lighting
Application domain
Color temperature 3000 K, 4000 K
Mounting type
IP 20

Similar Products

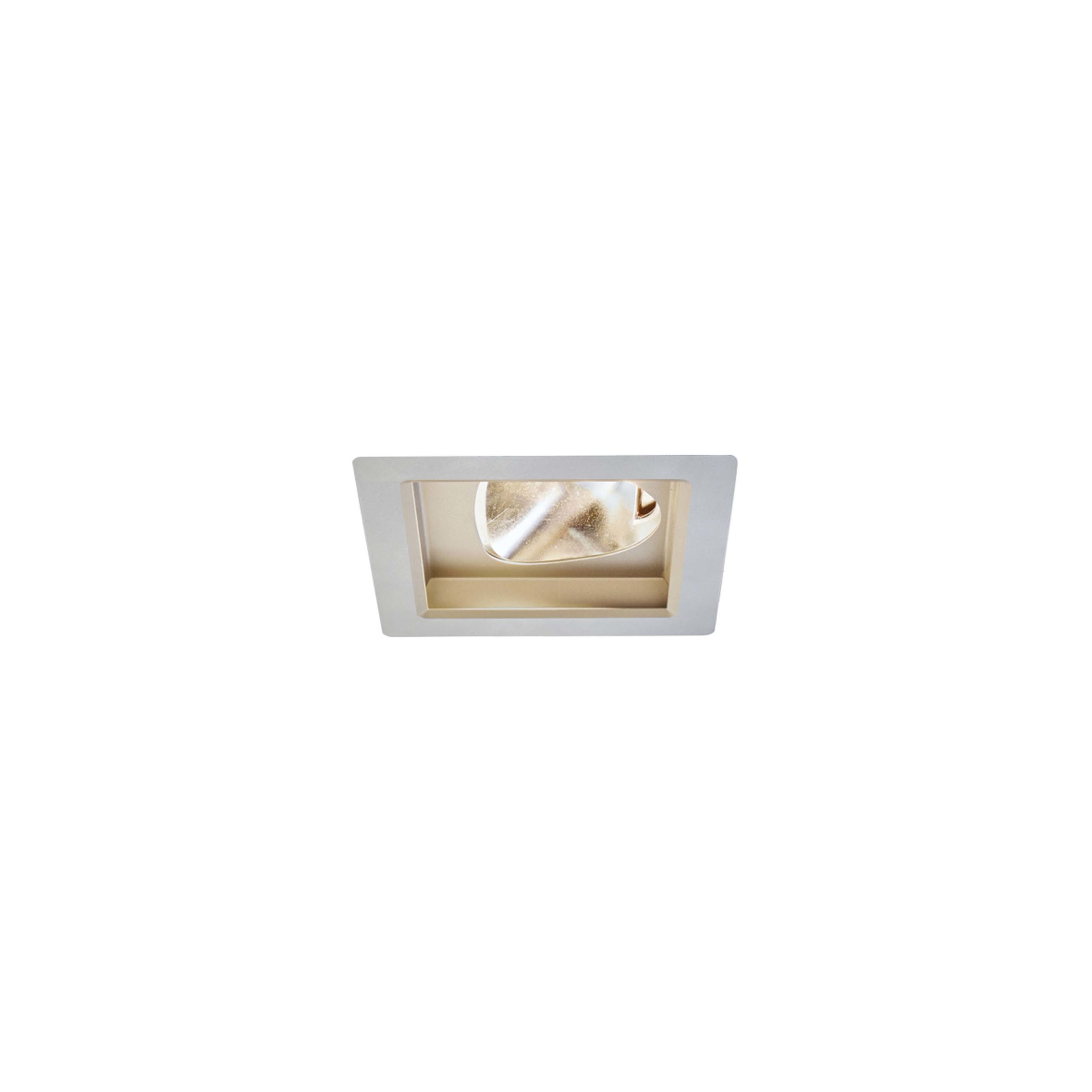

DL 3806 LED ASY
