Product | Orientable and Adjustable
EO 2242 LED
Circular recessed orientable spotlight for LED SPOT module, maximum 7 750 lumens

Color(s) :

Adjustable :

Norms : Classe I | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency energy class :

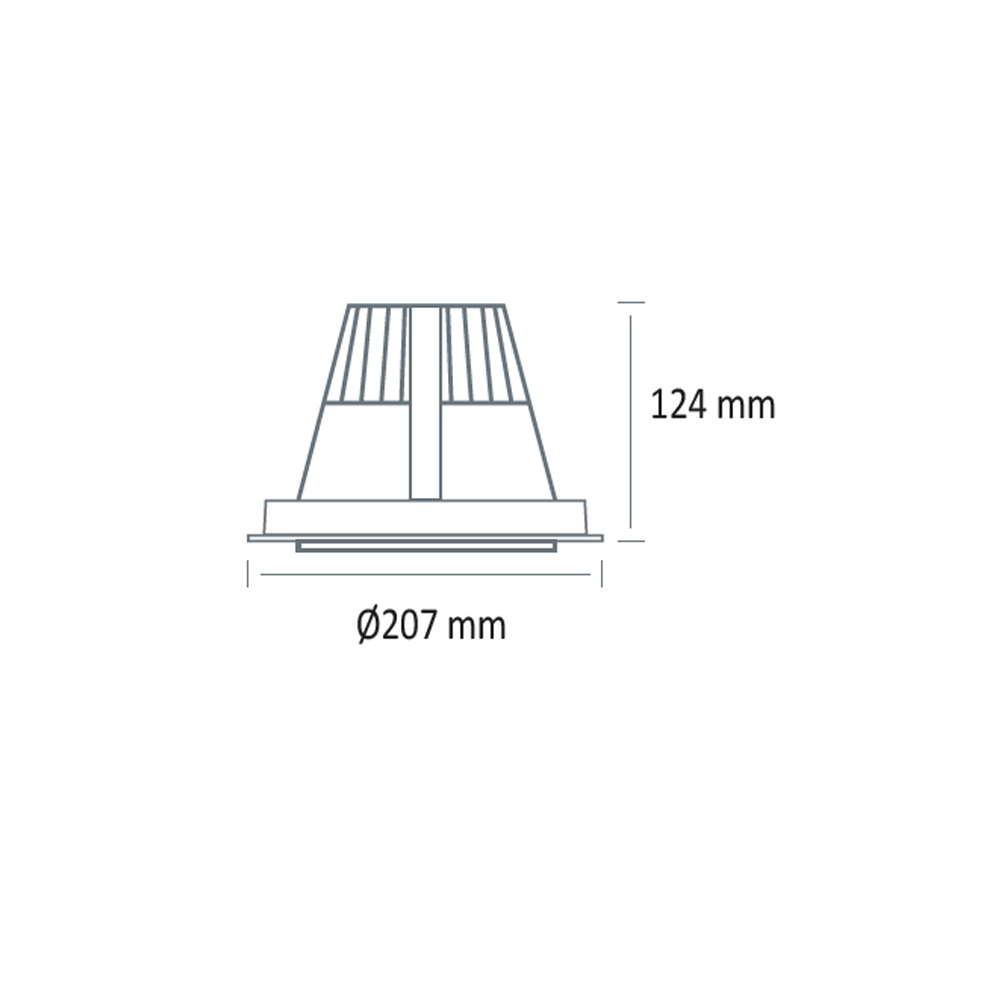

Recessed cut out :
Ø195 mm

Download the technical sheet:

Circular recessed orientable spotlight for LED SPOT module,
maximum 7 750 lumens
CRI of 80 or 90
MacAdam Ellipse: 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 151,2 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Static heat sink
Weight: Approx. 1,7 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): Fast connector (CORD), Colour filters (FIL

Type of lighting Accentuation
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 4000 K
Mounting type Encastré
IP 20
