Product | Orientable and Adjustable
EO 5084-B LED SQUARE
Recessed orientable spotlight for LED SPOT module,maximum 1 498 lumens

Color(s) :

Adjustable :

Norms : Class II | IP 20 | 650°

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E, F

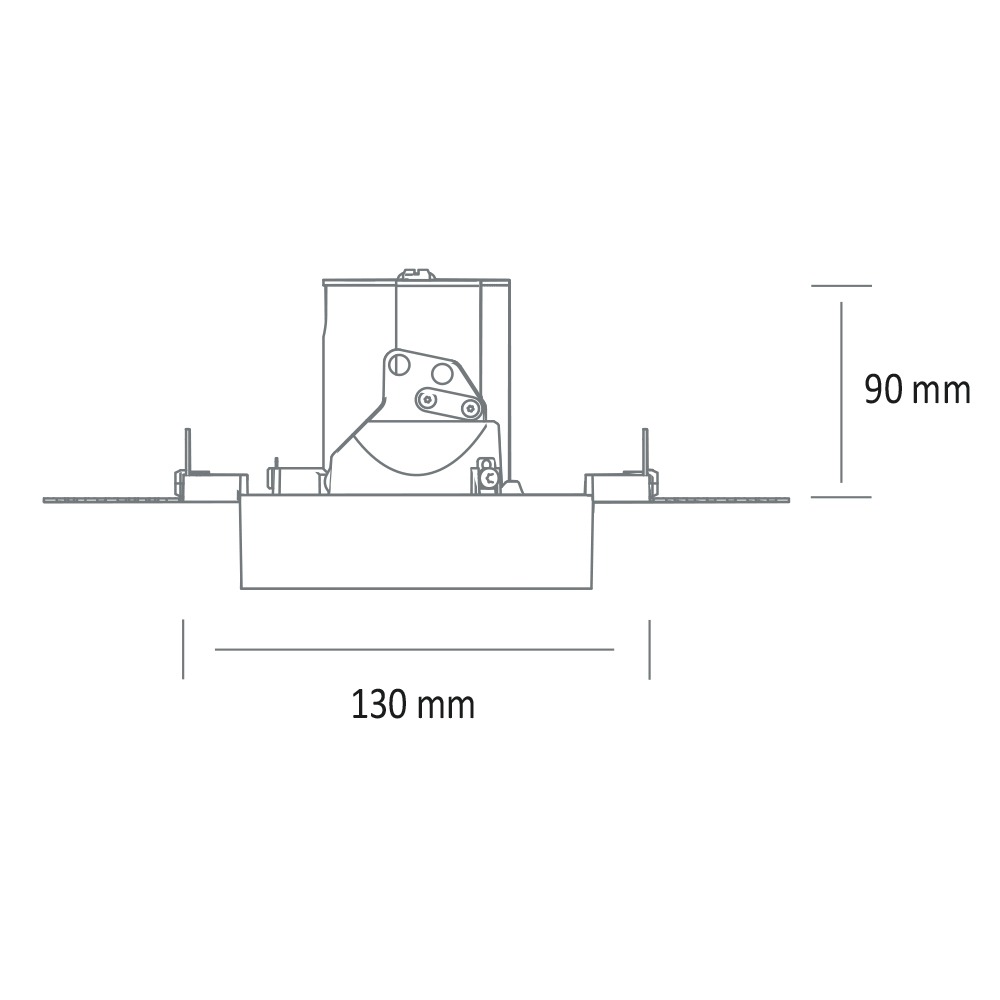

Recessed cut out :
105x105 mm

Download the technical sheet:

Recessed orientable spotlight for LED SPOT module, maximum 1 498 lumens
CRI of 95
MacAdam Ellipse: 2 SDCM
Available in 3 000 K, 3 500K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 99 lm/W
Springs in pressure for easier installation
Screwed fastening device with height adjustement for installation in
gypsum board (13 or 26mm)
Cast aluminum flange
Static heat sink
Weight: Approx. 1 kg
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s): Elliptical optic, honeycomb, plenum cover

Type of lighting Accentuation
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 3500 K, 4000 K
Mounting type Encastré
IP 20
