Product | Continuous rows

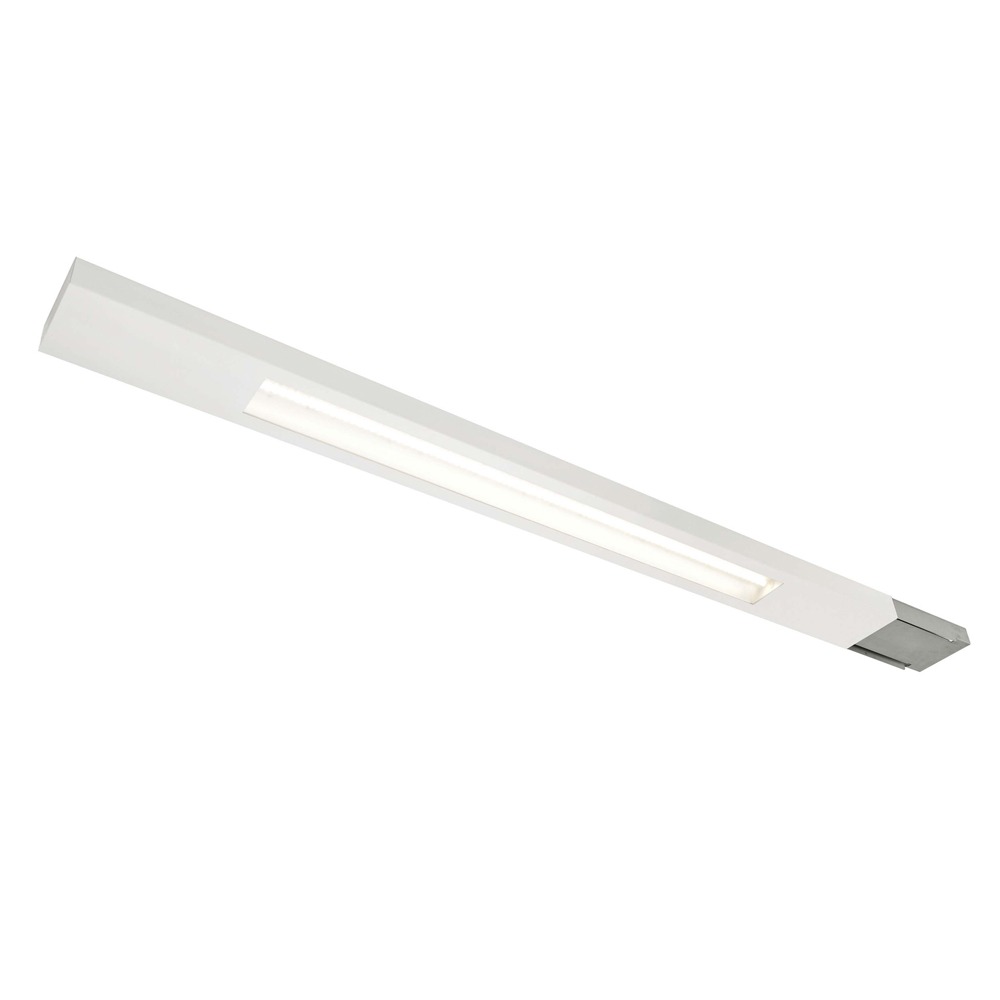

LC 3936 LED
Suspended continuous row lighting for LINEAR LED module, maximum 16502 lumens

Color(s) :

Norms : Class I IP 20 (light) / IP 40 (optical) I 650 degrees

Light distribution :

Driver(s) :

Efficiency Energy Class : C

Download the technical sheet:

bright LED path

  • CRI of 80
    MacAdam Ellipse : 3 SDCM
    Available in 3 000 K, 4 000 K
    50 000 hours lamp life (L80B20)
    Luminous efficiency of system up to 170,3 lm/W
    Available in single module and discontinuous row lighting
    Housing made of prelacquered steel
    Frosted optical made of polymethyl methacrylate (PMMA)
    Endcaps and suspension brackets are available in accessories
    Static heat sink
    Dust-proof optical compartment (IP 40)
    Sliding suspension bracket, interaxial maximum 3 000 mm
    Mechanical junction without tools
    Weight: approx. 7 kg (1750 mm), 15 kg (3500 mm)
    Standards housing lengths: 1 750 mm, 3 500 mm
    Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
    Option(s): Lighting sensor and-or movement detection (CEL), Carrying element for3-circuit tracks (3A), Steel white louvre (GLB), Double starter (DA)

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 4000 K
Mounting type Suspendu
IP 20
