Product | Continuous rows
LC 3887-A LED
Suspended continuous line for LED LINEAR module, maximum 22,488 lumens

Color(s) :

Norms : Class I IP 20 (light) / IP 60 (optical) I 650 degrees

Light distribution :

Driver(s) :

Efficiency Energy Class : A+, A++

Download the technical sheet:

bright LED path

  • Suspended continuous row lighting for LINEAR LED module,maximum 22488 lumens
    Cri of 80
    MacAdam Ellipse : 3SDCM
    Available in 3 000 K and 4 000 K
    50 000 hours of Lamp life (L80B20)
    Luminous efficiency of system up to 177,3 lm/W
    Available in single module, in continuous row or discontinuous row lighting
    Housing made of prelacquered steel
    Innovative high output optical system, made of grooved extruded polymethyl methacrylate (PMMA), with prisms
    Easier maintenance thanks to extractable optical system without tools

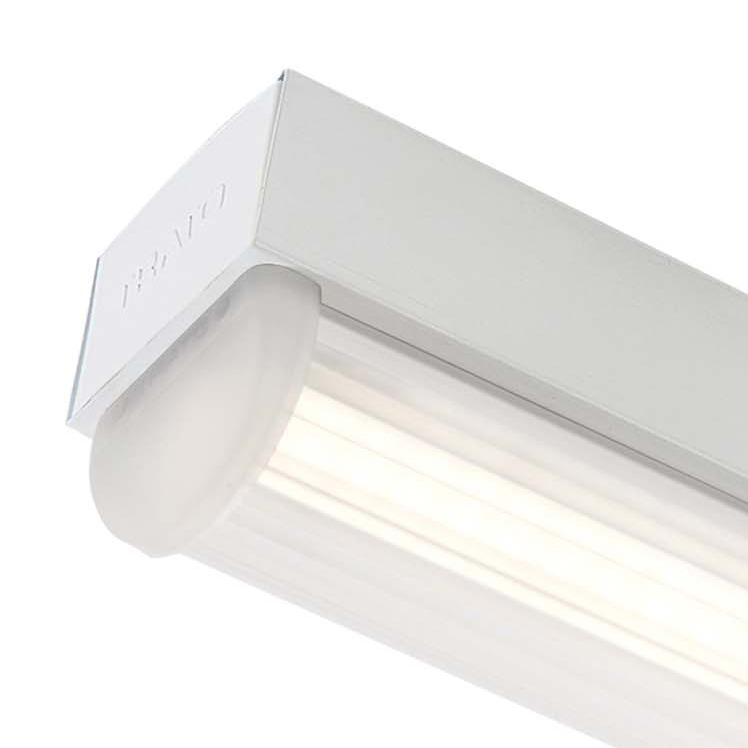

    The end caps of the optical system are made of injected polycarbonate
    Endcaps and suspension brackets are available in accessories
    Static heat sink with an aluminium profile
    Dust-proof optical compartment (IP 60)
    Sliding suspension brackets, distance between brackets maximum 3 500 mm
    Mechanical junction without tools
    Weight: approx. 4 kg (1750 mm), 9 kg (3500 mm)
    Standards housing lengths: 1 750 mm, 3 500 mm
    Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
    Option(s): Lighting sensor and-or movement detection (CEL), Steel white louvre (GLB)



Watch the product video:

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 4000 K
Mounting type Suspendu
IP 20

End-of-line tip

Detection cell

White-bladed grid
