Product | Continuous rows

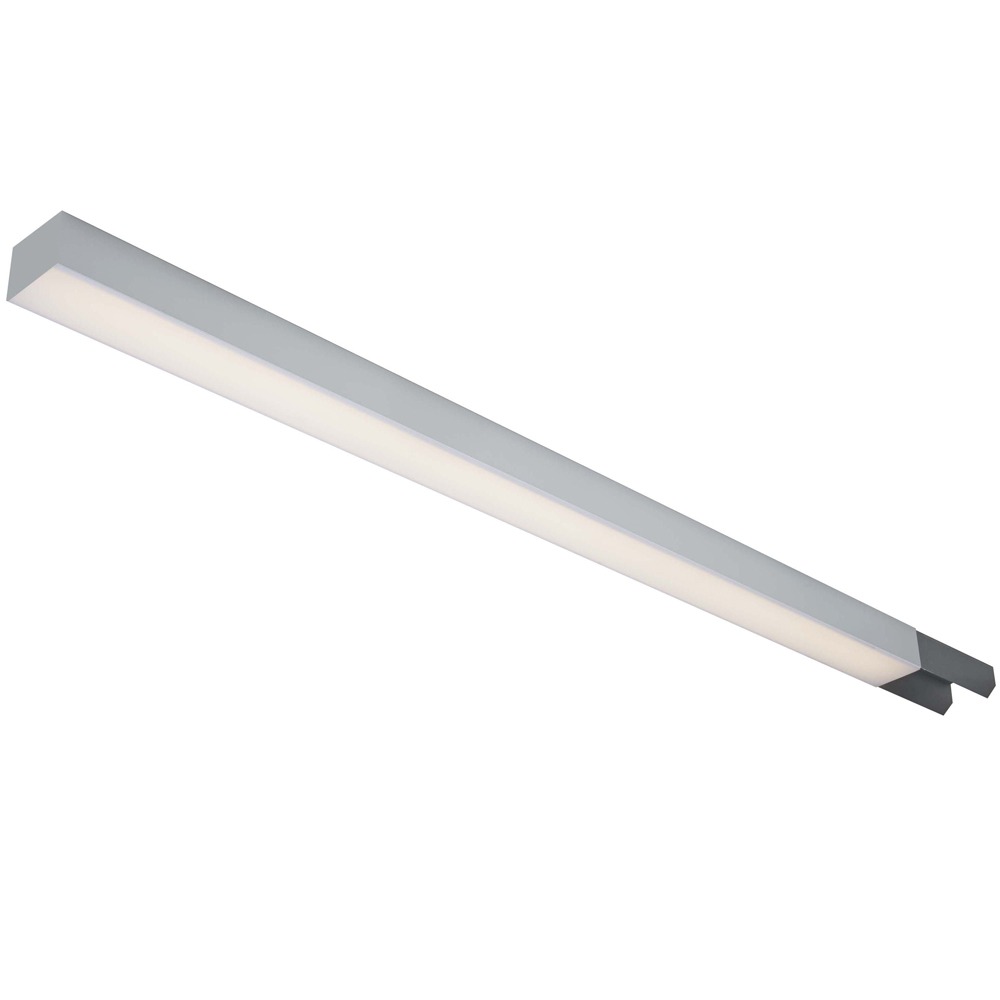

LC 3957 LED
Suspended continuous row lighting for LINEAR LED module, maximum 9 148 lumens
Color(s) :
Norms : Class I IP 20 | 650 degrees
Beam(s) :
Driver(s) :
/Convertisseur_FIXE.JPG){kind=small}
/Convertisseur_DALI.jpg){kind=small}
Efficiency Energy Class : C
Download the technical sheet:
MacAdam Ellipse : 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L80B20)
Luminous efficiency of system up to 161,5 lm/W
Through prewiring 3×1,5 mm²

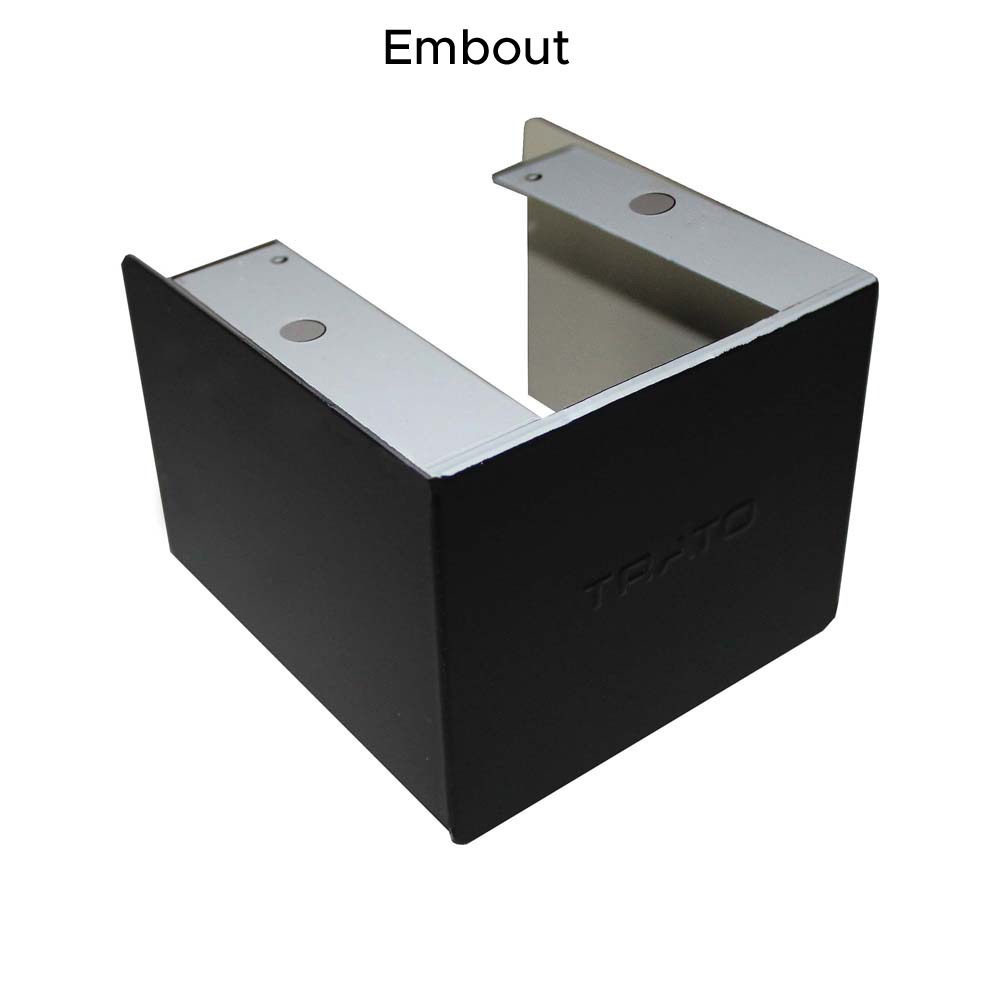

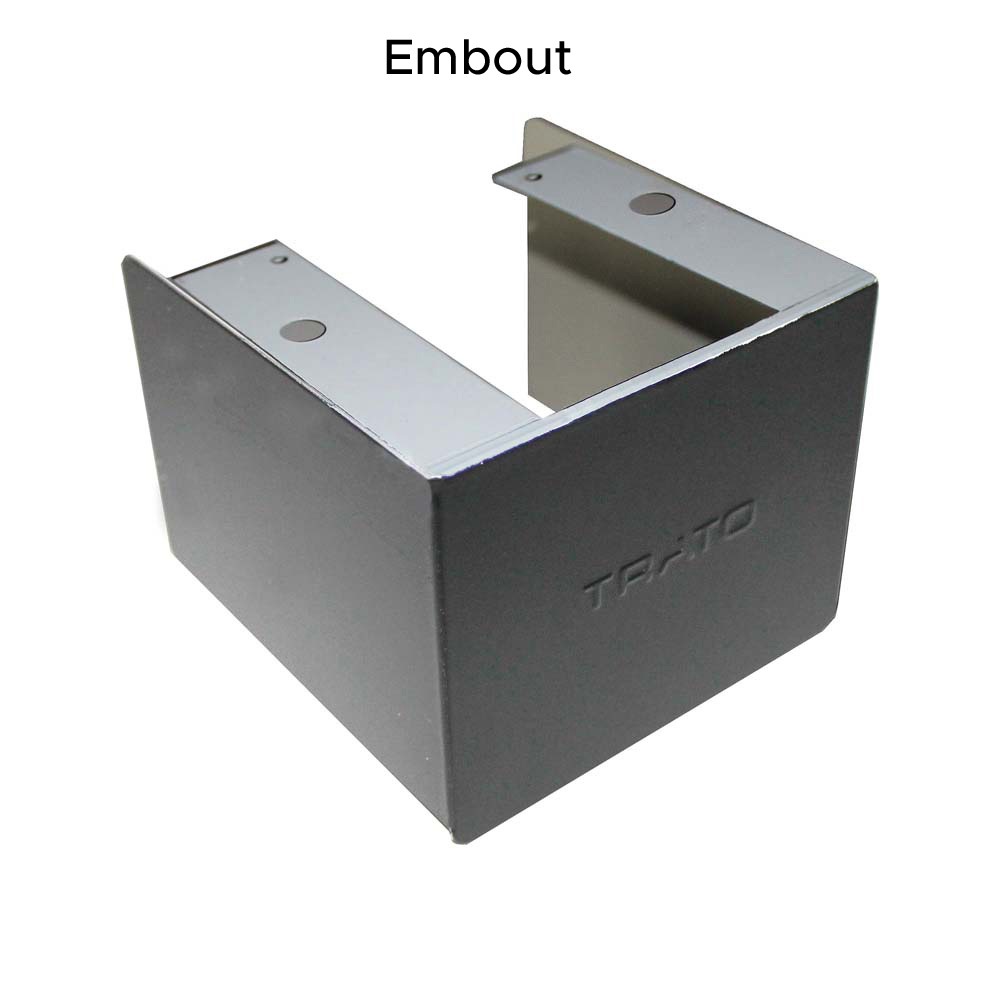

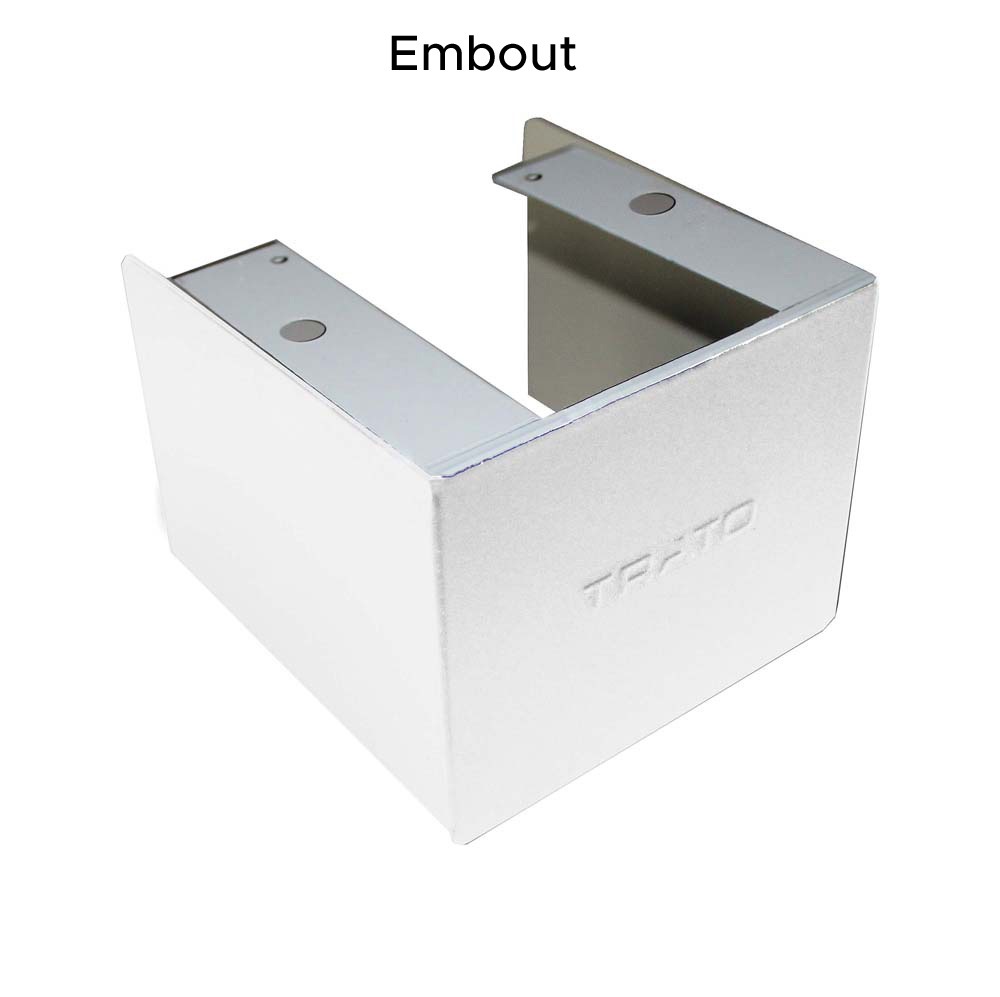

Endcaps are available in accessories
Housing made of prelacquered steel
Polycarbonate diffuser
Aluminium reflector
Static heat sink
Weight : approx. 4,5 kg (1121 mm), 6 kg (1681 mm), 6,7 kg (1961 mm), 7,5 kg (2241mm)
Driver(s) : Fixed (C Fixed), Dimmable driver DALI (CDIMMDALI)
| Type of lighting | |
| Application domain | |
| Color temperature | 3000 K, 4000 K |
| Mounting type | |
| IP | 20 |
White tip
Grey tip
Black tip
