Product | Suspended Luminaires

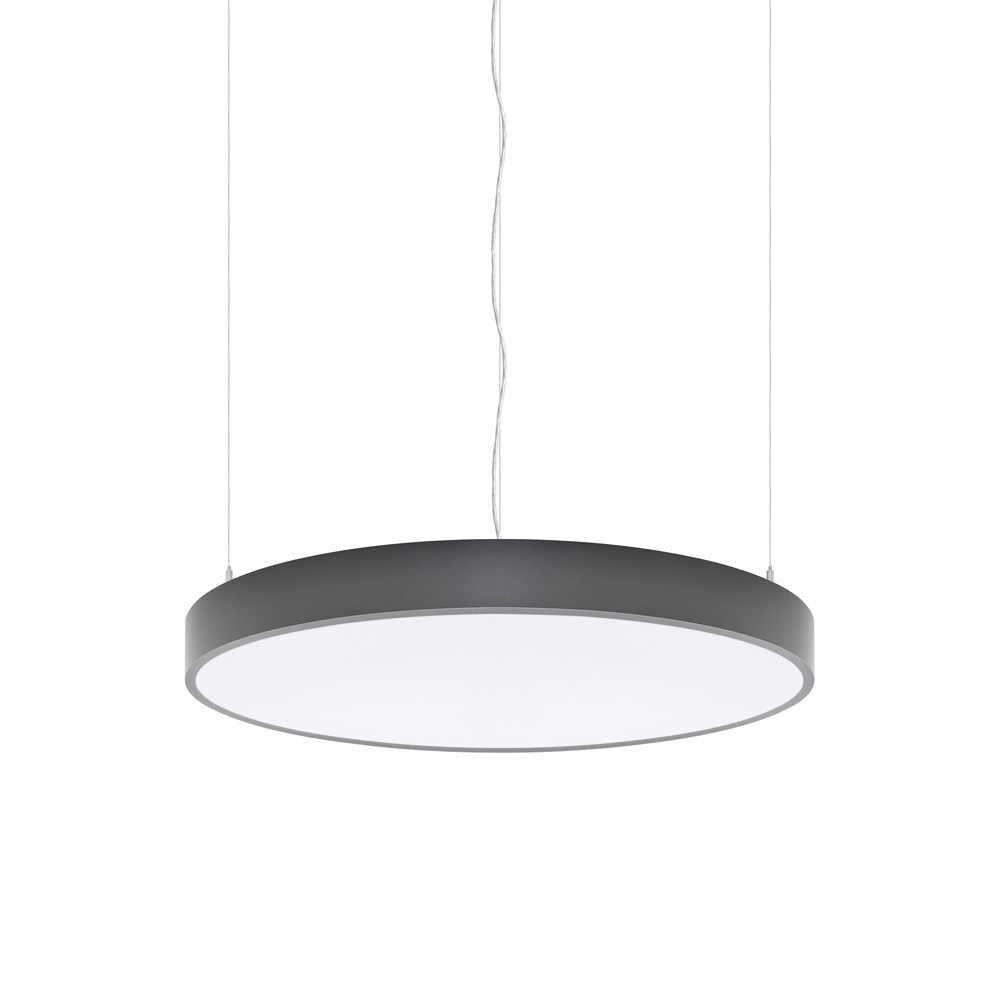

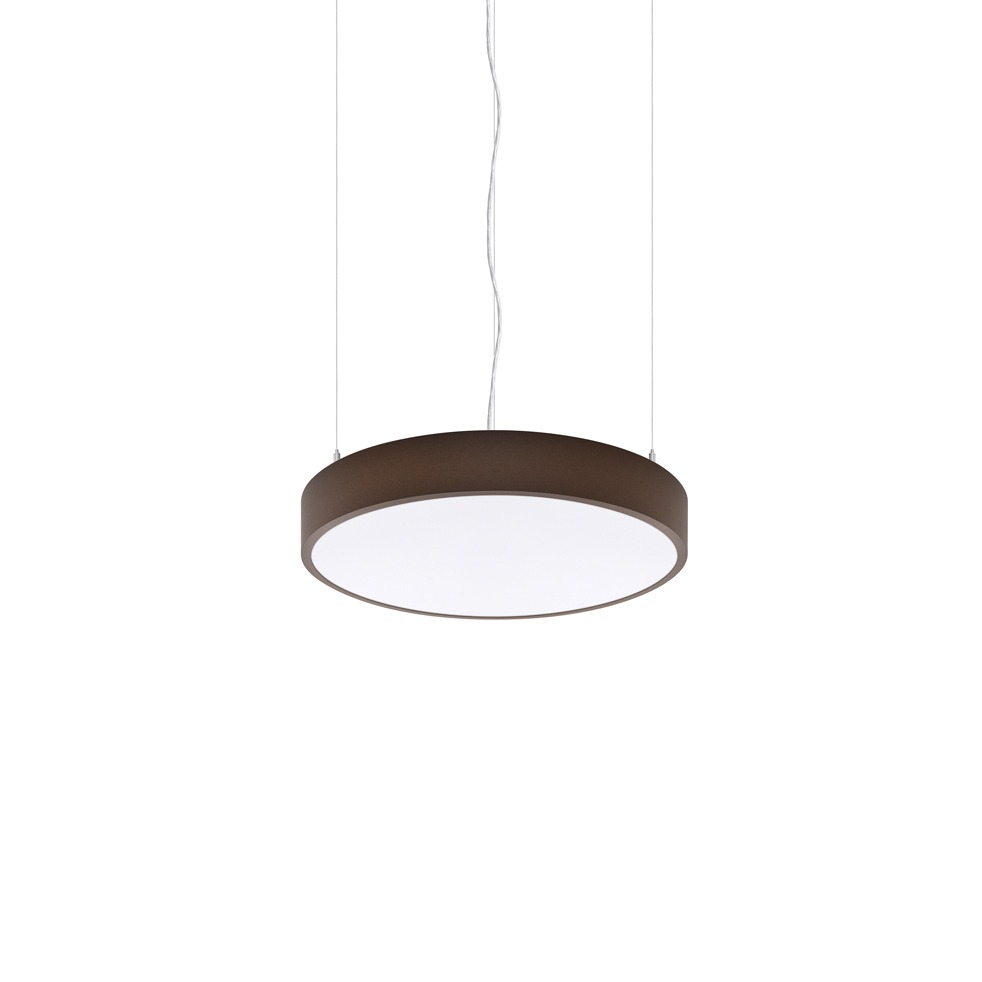

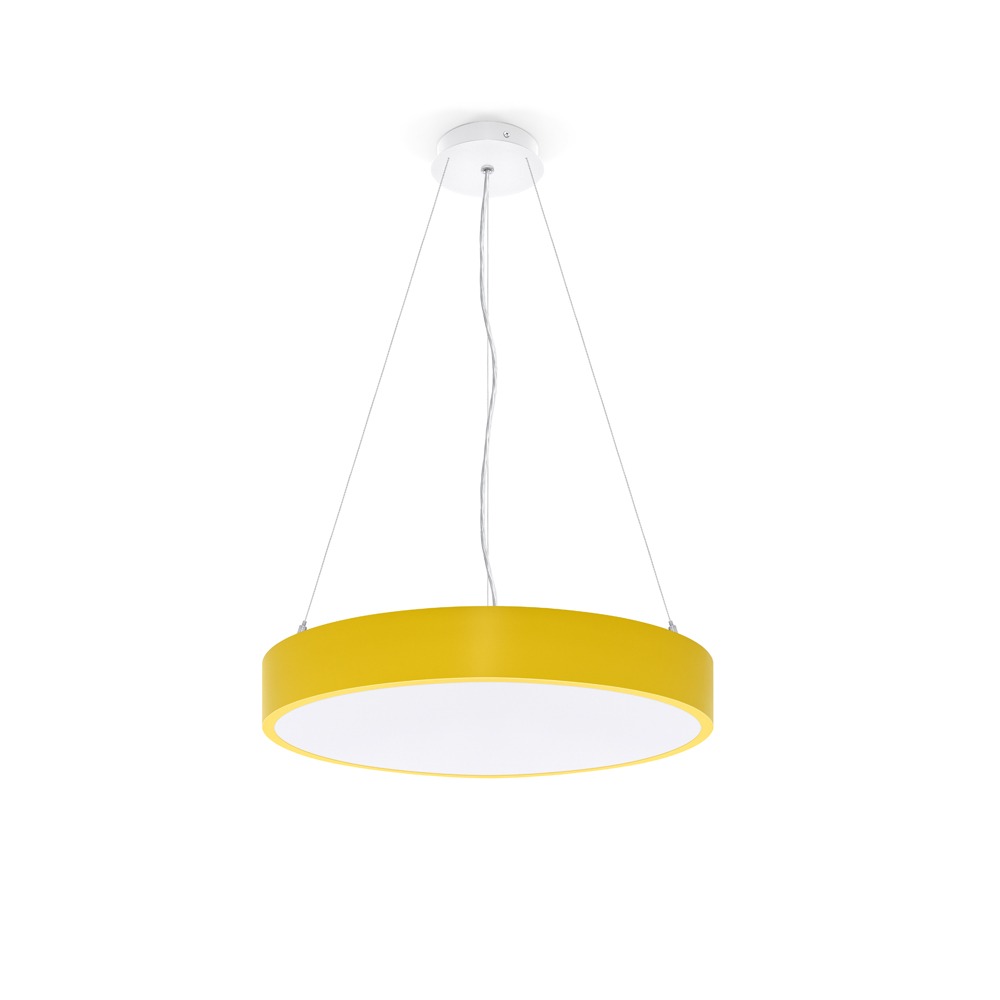

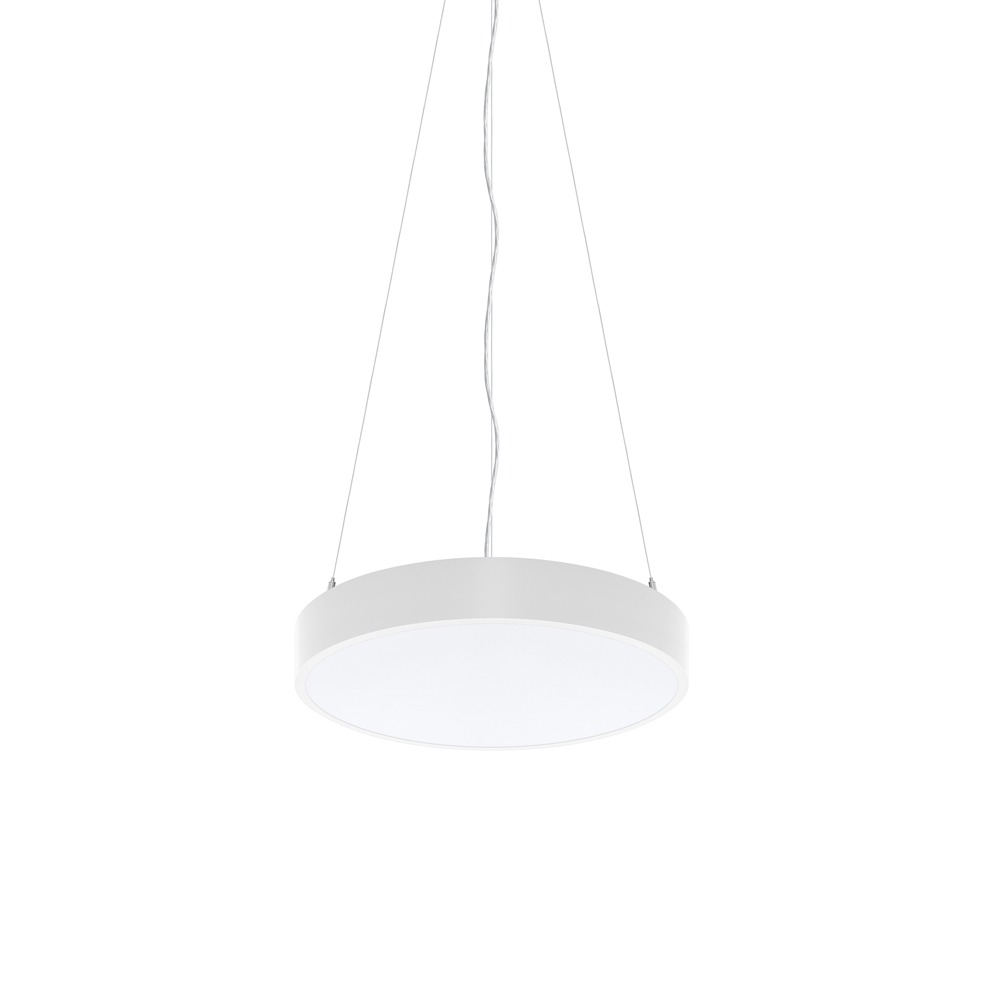

LS 2476 LED
Direct lighting system for circular LED module, maximum 18,300 lumens
Color(s) :
Norms : Class I IP 20 650 degrees
Beam(s) :
Driver(s) :
/Convertisseur_FIXE.JPG){kind=small}
/Convertisseur_DALI.jpg){kind=small}
Efficiency Energy Class : C
Download the technical sheet:
Direct lighting system for CIRCULAR LED module, maximum 18 300 lumens
CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 124 lm/W
Optical diffuser made of polymethyl methacrylate (PMMA)
Extruded aluminum box painted

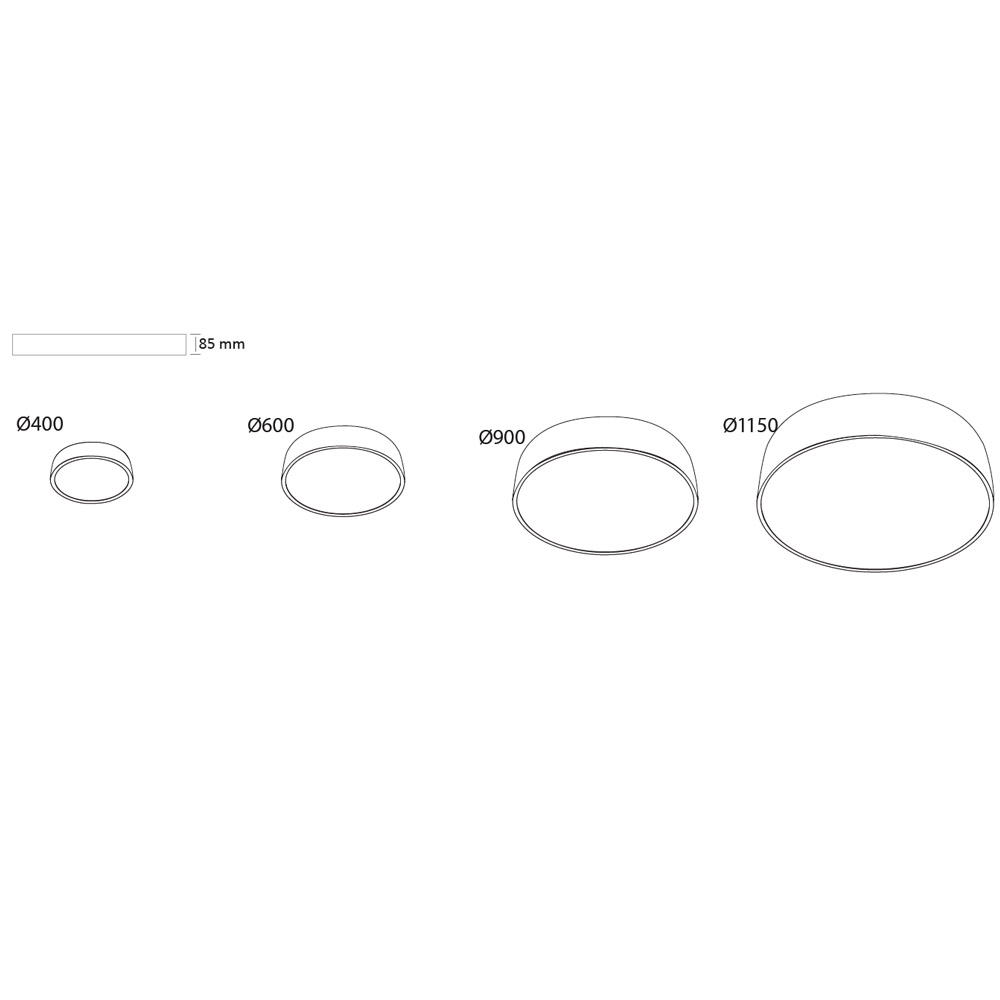

Weight: 3 kg (Ø400mm), 5,9 kg (Ø600mm), 14,8 kg (Ø900mm),
23,8 kg (Ø1150mm)
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)

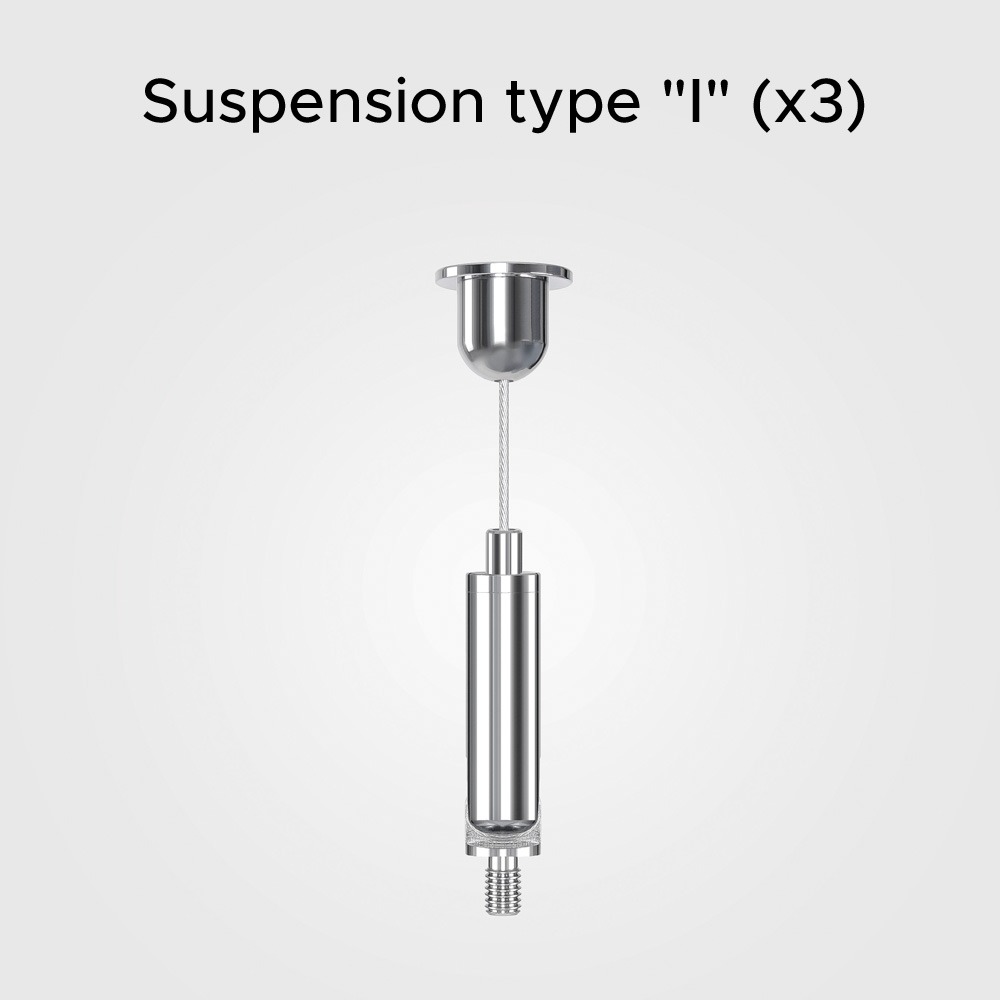

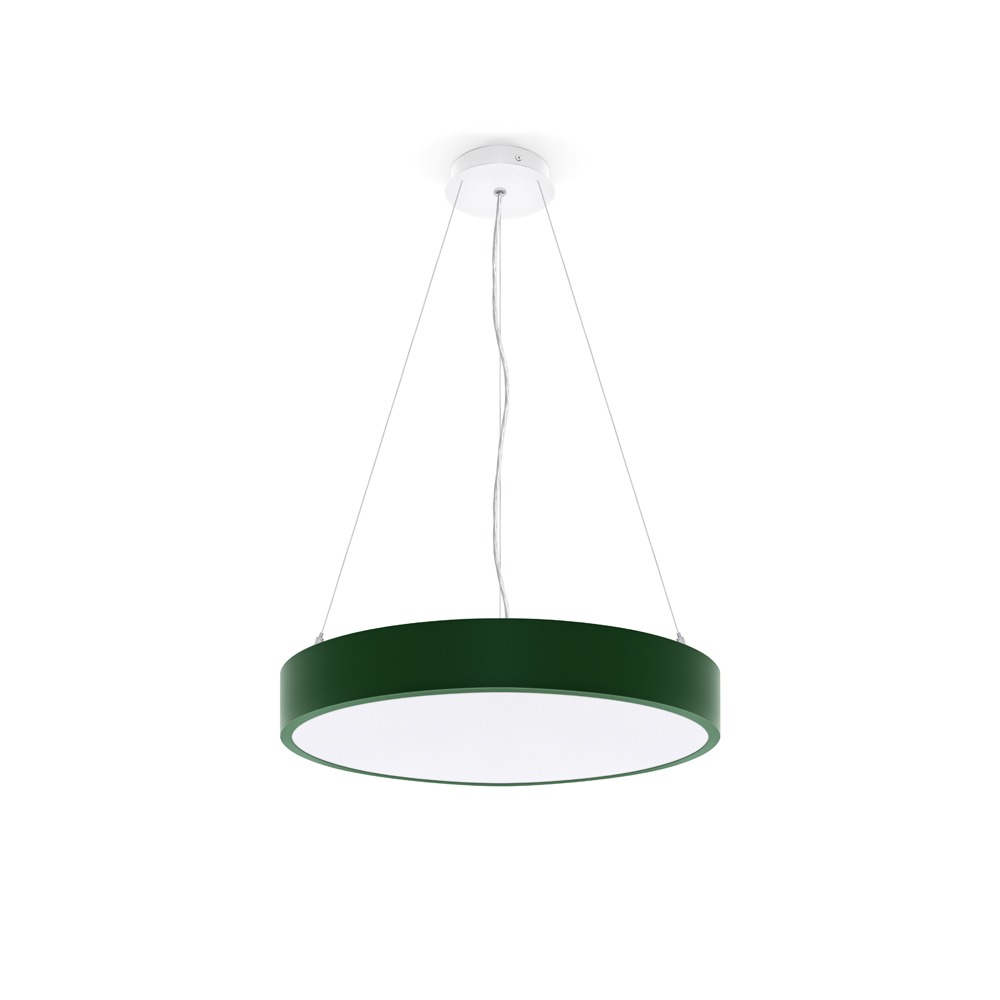

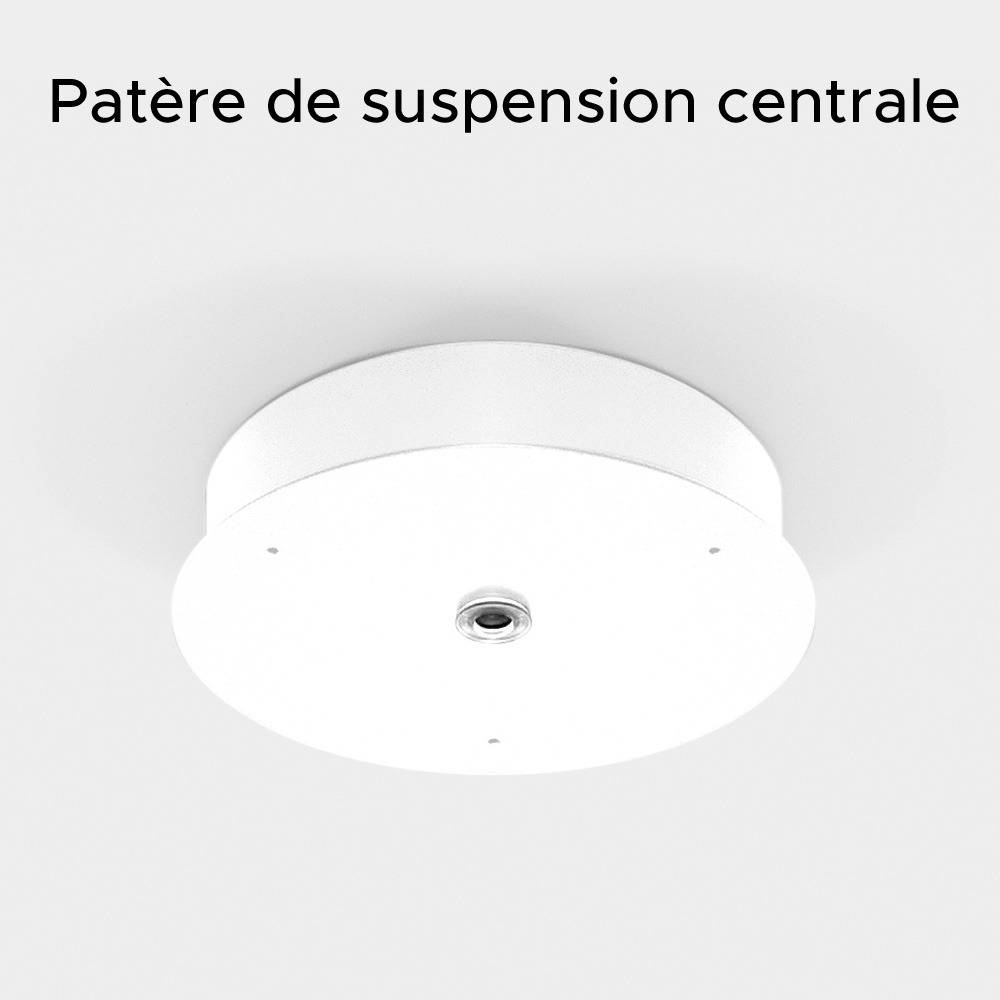

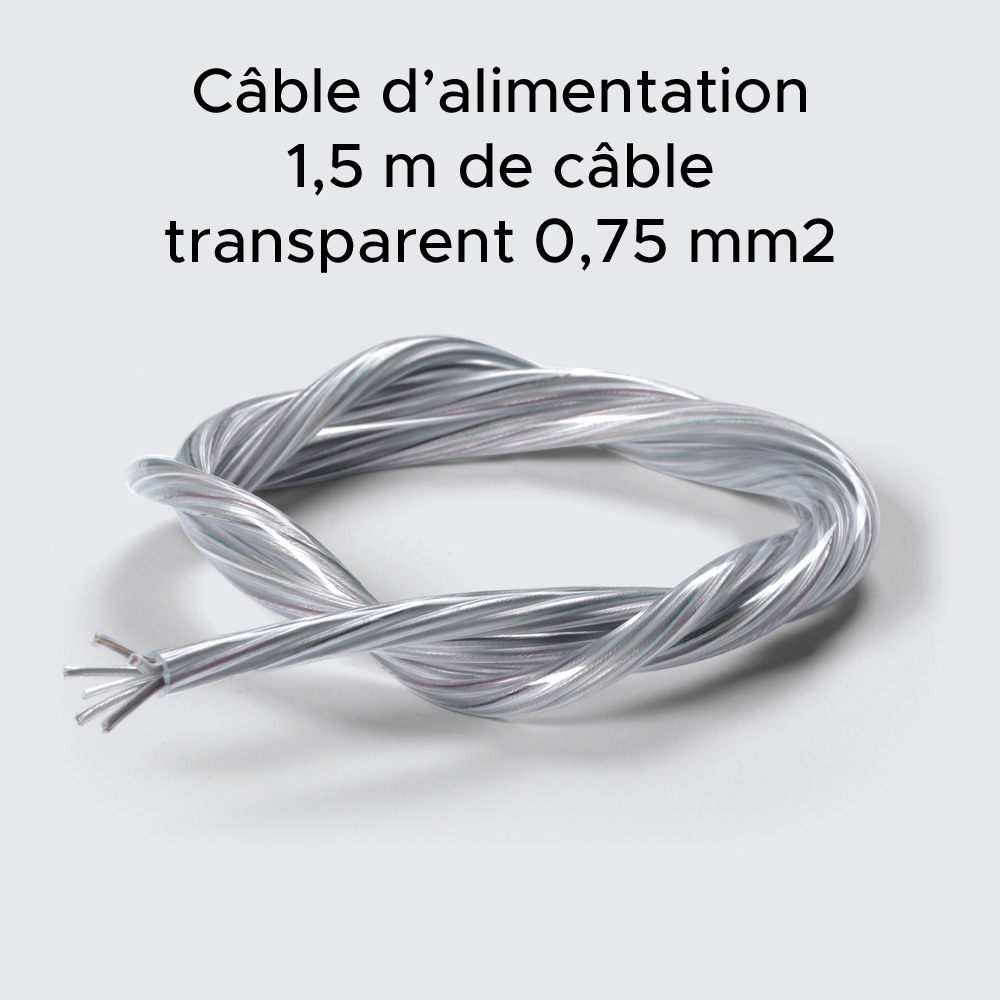

Option(s): Suspension kit (KS), Transparent power cable and coat bracket
suspension.
| Type of lighting | Général |
| Application domain | Retail / magasins, GSA, GSS |
| Color temperature | 3000 K |
| Mounting type | Suspendu |
| IP | 20 |
