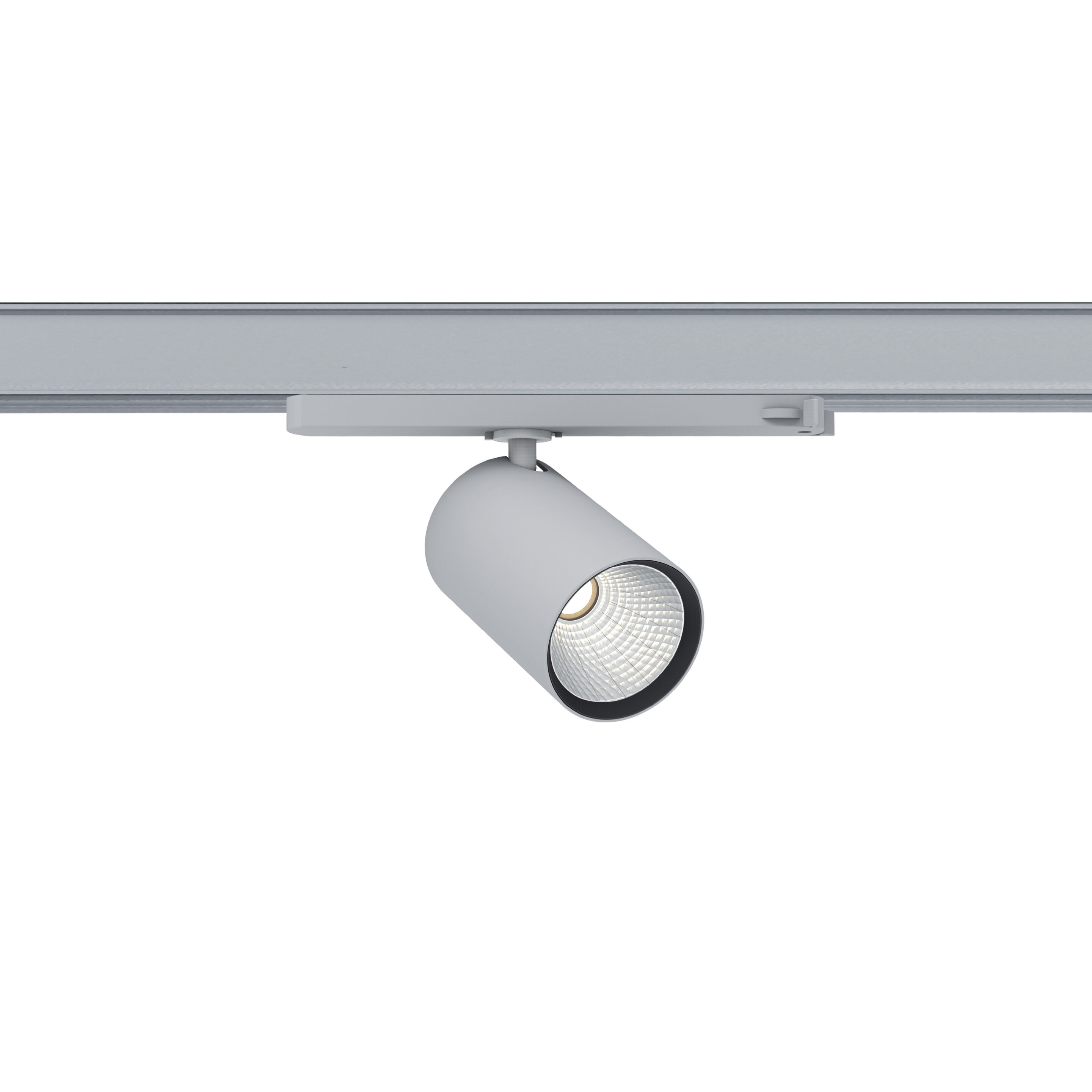

Product | Accent Lighting - Led Projectors 230V
PR 5140-A LED
Orientable projector LED SPOT module, 4 610 lumens maximum

Color(s) :

Adjustable :

Norms : Classe II | IP 20 | 650° | RG0non défini

Beam(s) :

Driver(s) :

Efficiency Energy Class : D, E
Recessed cut out :

Download the technical sheet:

Orientable projector LED SPOT module, 4 610 lumens maximum
CRI of 80 or 90
MacAdam ellipse de : 3 SDCM
Available in 2 500 K, 3 000 K, 3 500K, 4 000 K
50 000 hours of lamp life (L80B10)
Luminous efficiency of system up to 152,2 lm/W
3 circuits track adaptator with integrated driver
Cast aluminum head
Static heat sink
Weight : approx. 0,9 kg
Driver(s): Fixe, dimming driver DALI (CDIMMDALI)
Driver Casambi

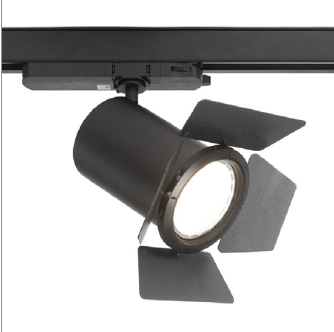

Option(s) : elliptical reflector (ELL), Volet (VOL), Hidden converter in the rail (Ghost)
Photobiological risk group 0

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2500 K, 3000 K, 3500 K, 4000 K
Mounting type Sur rail 3 allumages
IP

PR 5140-A LED ELL

PR 5140-A LED GHOST

PR 5140-A LED VOL
