PR 5140-B LED ICOB GORGE
Orientable projector for LED SPOT, maximum 2 784 lumens

Color(s) :

Adjustable :

Norms : Class I | IP 20 | 650° | RG1

Beam(s) :

Driver(s) :

Efficiency Energy Class : E

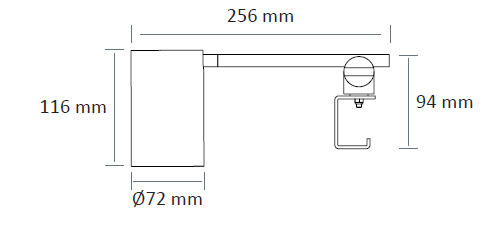

Recessed cut out :
256 mm/ 116 mm / 72 mm

Download the technical sheet:

Orientable projector for LED SPOT, maximum 2 784 lumens
CRI of 90
MacAdam Ellipse : 2 SDCM
Available in 3 000 K, 3 500 K and 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 144,3 lm/W
3-circuits track adaptor with integrated driver
Head of spot made of die-cast aluminium
Deep sheath for an optimal visual comfort
Polycarbonate lens optics
Interchangeable ICOB module
Weight : Approx. 0,9 kg
Driver(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Photobiological risk group 1

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 3000 K, 3500 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20
