Product | Aluminium Profiles
SE 5080 LED
Lighting system for linear LED module, maximum 13 432 lumens / meter

Color(s) :

Norms : Class I | IK07 | 650°

Beam(s) :

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

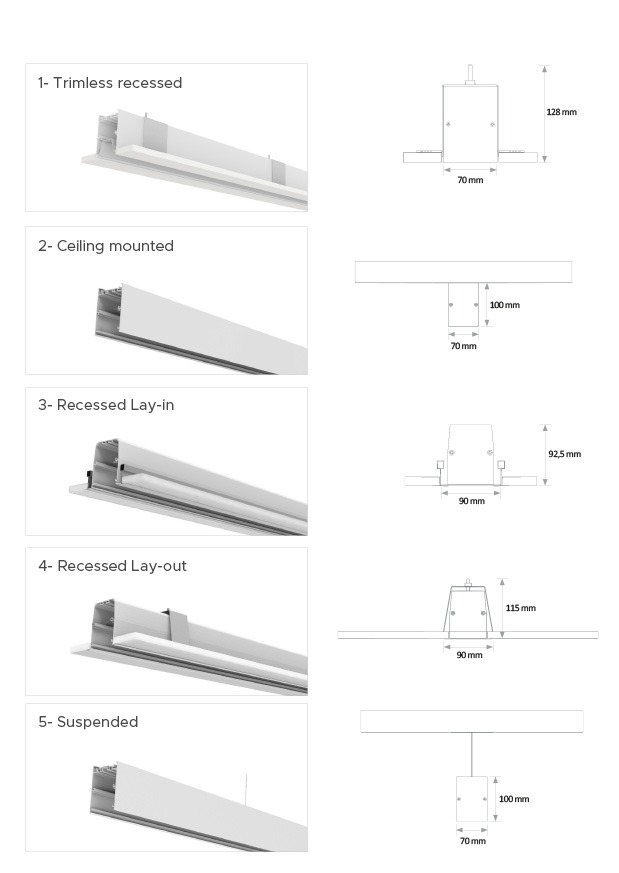

Installation: suspended, LO or LI recessed, ceiling mounted
Independant elements or elements for begining, intermediare or end for
continuous lighting up to 40 meters
CRI of 80
MacAdam ellipse : 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L80B20)
Luminous efficiency of system up to 159,6 lm/W
Optics available in rolls upt to 50 meters (10, 20, 30, 40 or 50 meters) in
predefined lenght (1 120 mm, 1 680 mm, 2 240 mm and 3 360 mm)
Opal diffuser made of polycarbonate (DO) or microprism diffuser (MIC)
Housing made of painted extruded aluminium profil
Painted steel endcaps
Static heat sink
Weight: approx. 5 kg / m
Number of module(s): Depend on the lenght of the luminaire
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Accessories: Suspension kit
Option(s): Suspended luminaire with indirect lighting, 90° angle, lighting sensor
and-or movement detection

Type of lighting
Application domain Transport
Color temperature 3000 K, 4000 K
Mounting type
IP

Coil

Junction plate

Microprismatic diffuser

Opal diffuser

Withdrawable LED tray
