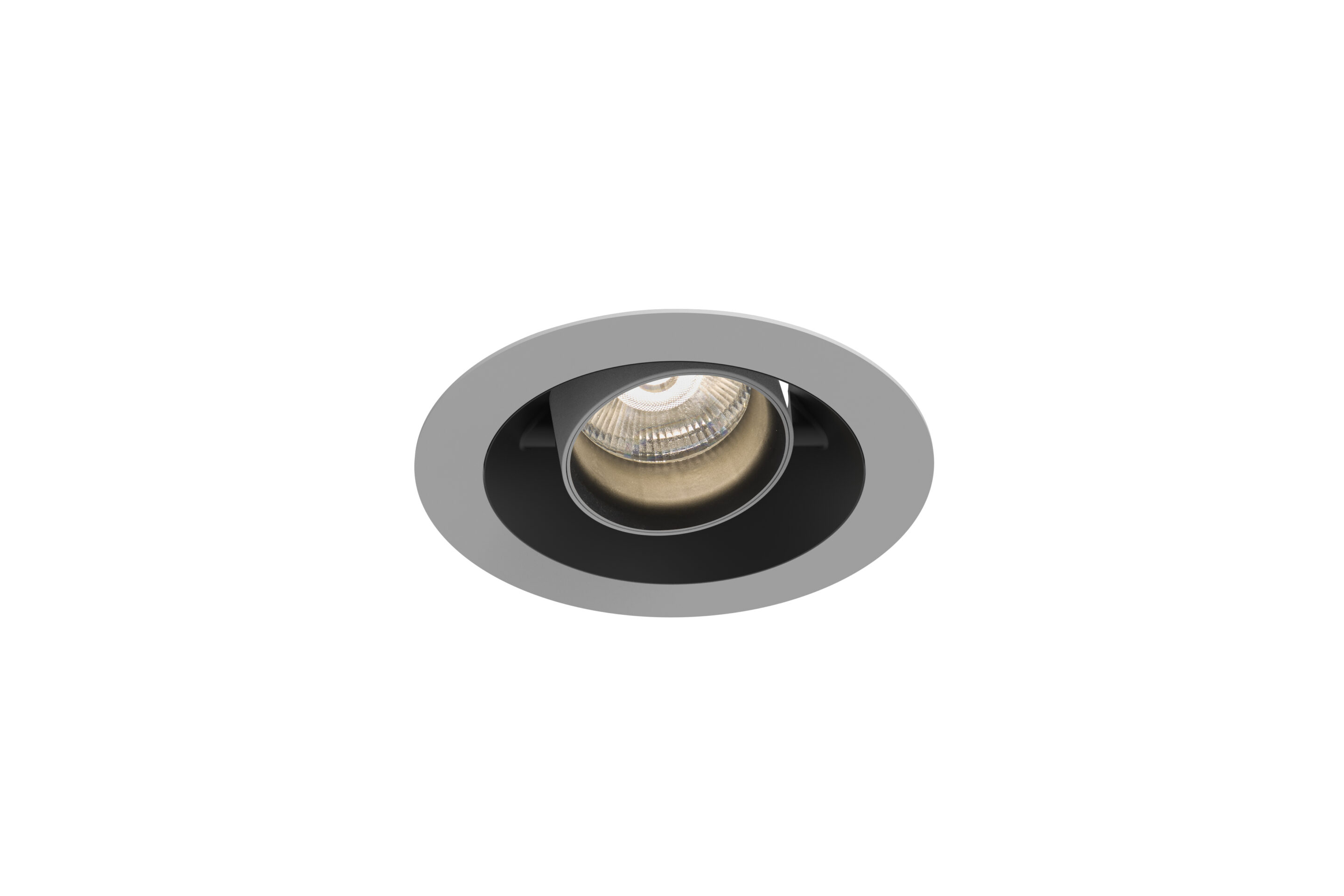

Product | Orientable and Adjustable
EO 5140-B LED ICOB
Ceiling mounted luminaire for LED SPOT module, maximum 2 784 lumens

Color(s) :

Adjustable :

Norms : Class I | IP 20 | 650° | RG1

Beam(s) :

Driver(s) :

Efficiency Energy Class : E
Recessed cut out :
Ø135 mm

Download the technical sheet:

Ceiling mounted luminaire for LED SPOT module, maximum 2 784 lumens
CRI of 90
MacAdam Ellipse : 2 SDCM
Available in 3 000 K, 3 500 K et 4 000 K
50 000 hours lamp life (L80B10)
Luminous efficiency of system up to 144,3 lm/W
Springs in pressure for easier installation
Ring made of die-cast aluminium
Interchangeable ICOB module
Polycarbonate lens optics
Weight : Approx. 0,9 kg
Drivers(s) : Fixed, Dimmable DALI (CDIMMDALI), Casambi, Connect
Option(s) : Fast connector (CORD)
Photobiological risk group 1

Type of lighting
Application domain Retail / magasins, GSA, GSS, Bureaux, Hôtellerie
Color temperature 2700 K, 3000 K, 3500 K, 4000 K
Mounting type Encastré
IP 20
