Product | Continuous rows
LC 3976 LED EVO
Suspended continuous line for LED LINEAR module, maximum 25 200 lumens

Color(s) :

Norms : Class I IP 20 (light) 650 degrees Fahrenheit IK 10 RG0

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

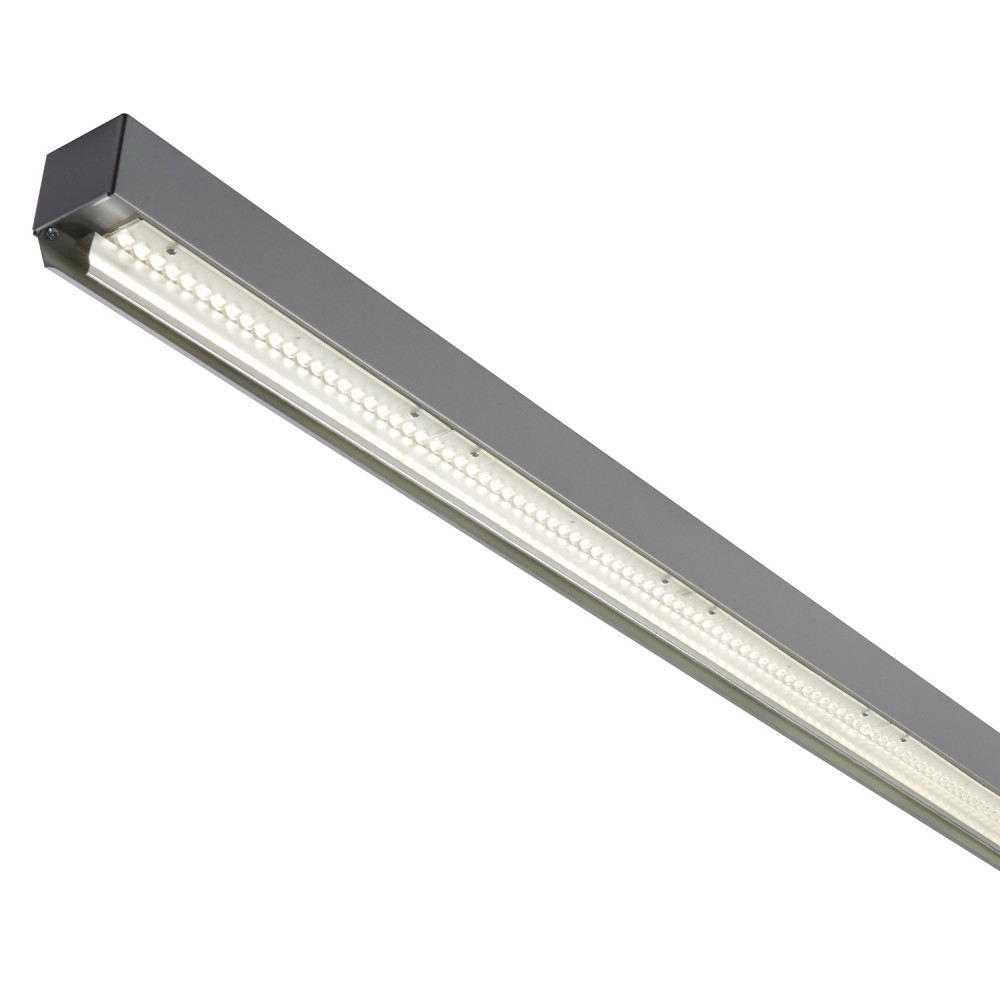

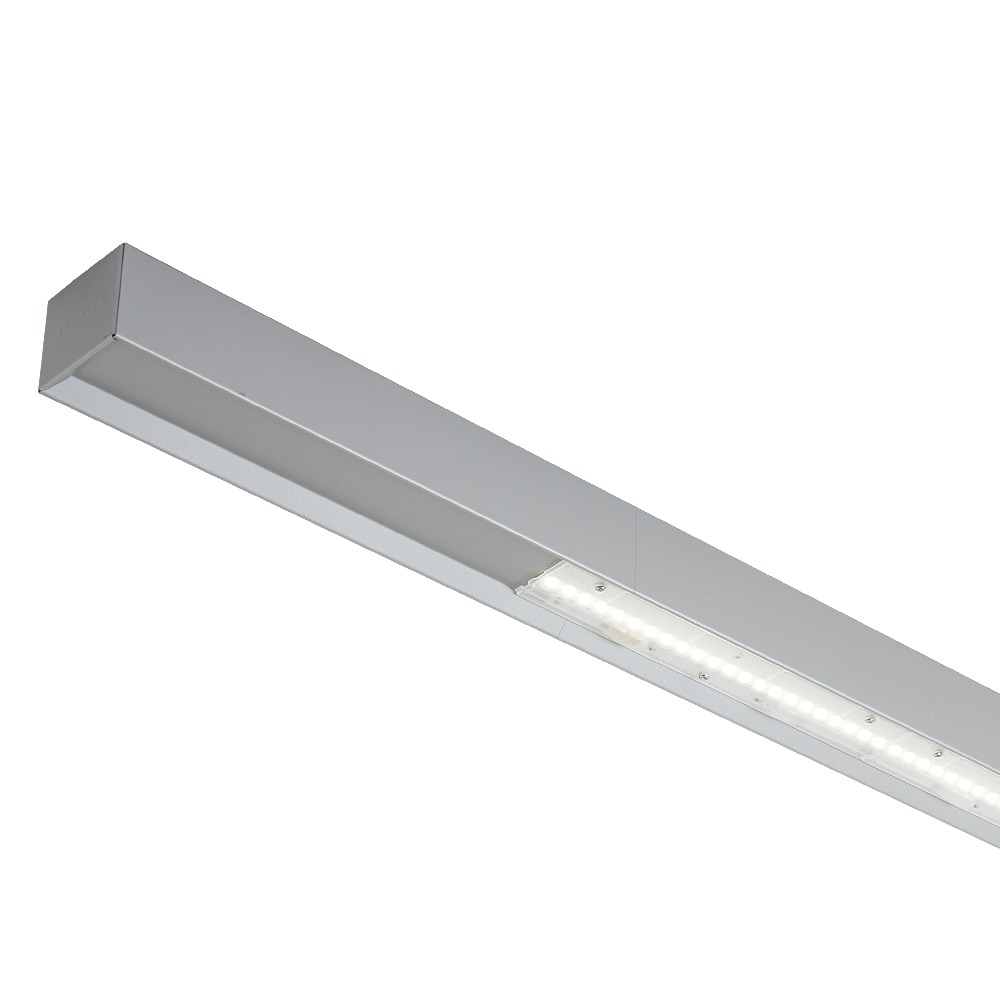

Suspended continuous row lighting for LINEAR LED module, maximum 25 200 lumens
CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L90B10)
Luminous efficiency of system up to 183,3 lm/W
Available in single module, in continuous row or discontinuous row lighting
Housing made of prelacquered steel
Cluster optical with lens, made of polycarbonate (PC)

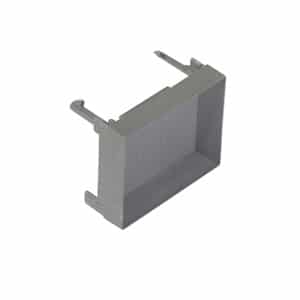

Endcaps and suspension brackets are available in accessories
Static heat sink
Optical compartment protected against shocks and dust
Sliding suspension brackets, distance between brackets maximum 3 500 mm
Mechanical junction without tools
Weight: approx. 4 kg (1750 mm), 8 kg (3500 mm)
Standards housing lengths: 1 750 mm, 3 500 mm
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Option(s) : Lighting sensor and-or movement detection (CEL),
Independent Unit lighting Security (BAES)
Photobiological risk group 0

Type of lighting
Application domain
Color temperature 3000 K, 4000 K
Mounting type
IP 20

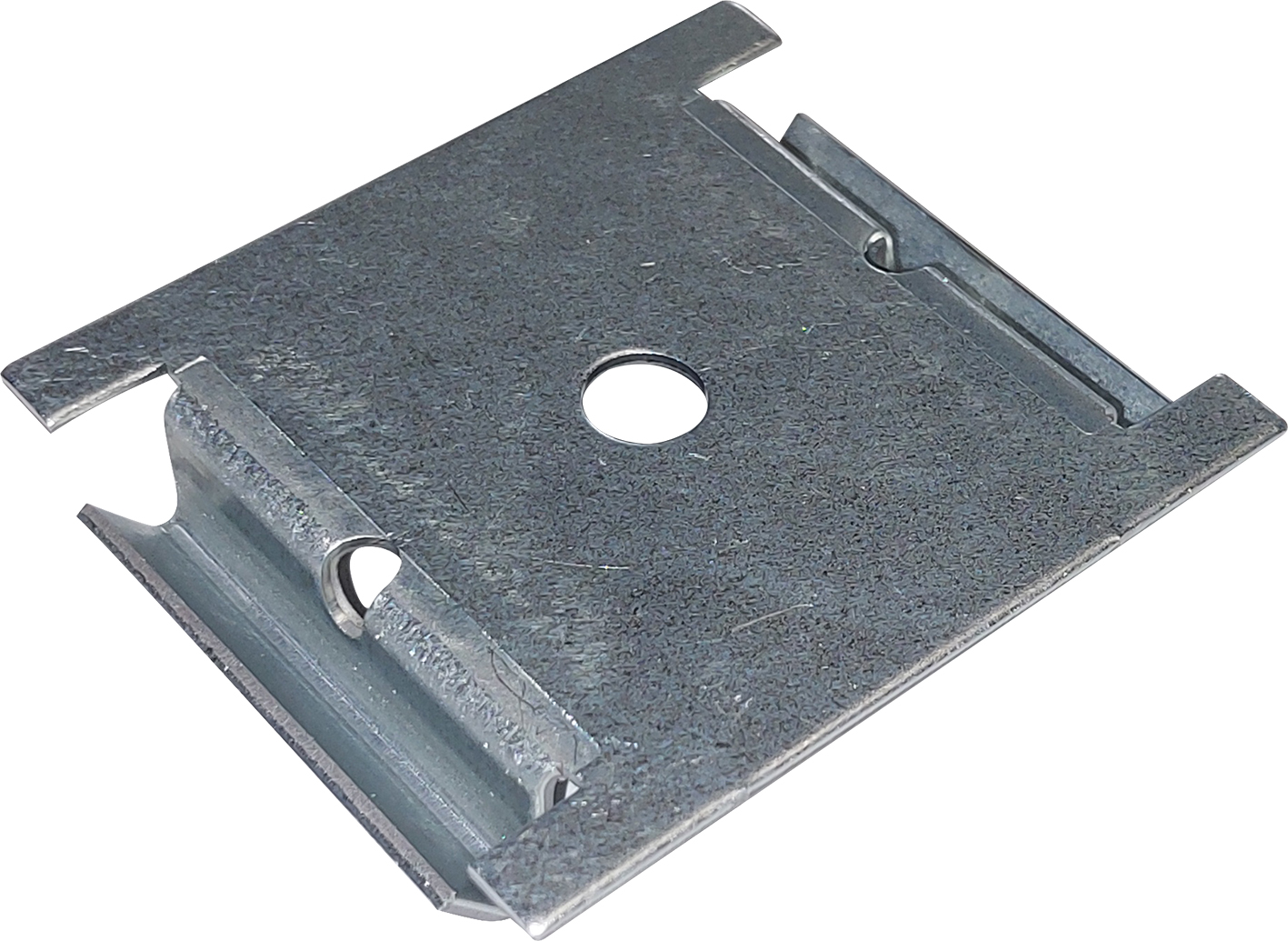

Suspension stirrup

Tip
