LS 3976 LED PIVOT
Luminaire suspended from the rail, with central pivot facilitating rotation, for LINEAR LED module, maximum 8 400 lumens

Color(s) :

Norms : Classe I | IP 20 | 650° | IK 10 | RG0

Light distribution :

Driver(s) :

Efficiency Energy Class : C
Recessed cut out :

Download the technical sheet:

CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L90B10)
Luminous efficiency of system up to 175,7 lm/W
3 circuits track adaptor
Housing made of prelacquered steel
Cluster optical with lens, made of polycarbonate (PC)
reflector made of Miro Silver available in Miro 8 (M8) quality optical
protector made of painted steel
Endcaps made of injected polycarbonate
Static heat sink
Optical compartment protected against shocks and dust
Weight: approx. 3 kg (1225 mm), 4,5 kg (1775 mm)

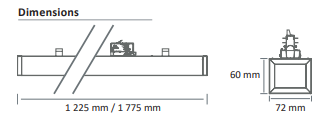

Standard length: 1 225 or 1 775 mm
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Photobiological risk group 0

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20
