Product | Track Lighting Luminaires

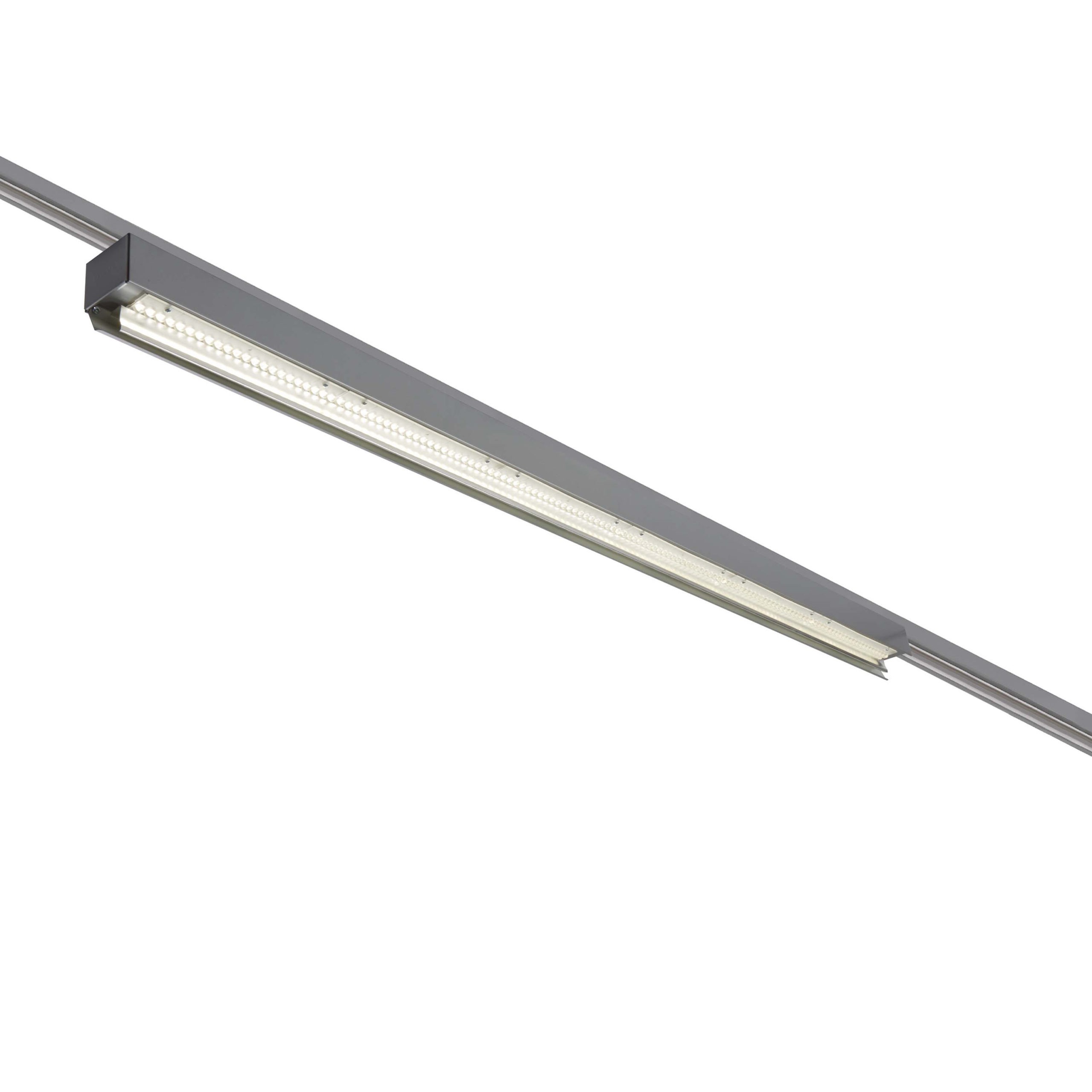

LS 3976 LED ASY
Asymmetric rail-suspended light for LED LINEAR module, maximum 10,790 lumens

Color(s) :

Normes : Class I IP 20 | 650° | IK 10

Light distribution :

Driver(s) :

Efficiency energy class :

Download the technical sheet:

  • CRI of 80
  • MacAdam Ellipse: 3 SDCM
  • Available in 3,000K, 3,500K, 4,000K and 5,000K
  • Lifespan 50,000 hours (L90B10)
  • System light efficiency up to 158 lm/W
  • 3-ignition rail adapter
  • Prelaminated steel sheet body
  • Cluster optics made of lenses, Polycarbonate (PC), Miro 8 aluminium reflector and prelaminated steel optical protector
  • Injected polycarbonate optical block tips
  • Static heat sink
  • Optical compartment protected from shocks and dust
  • Weight: approx. 3 kg (1225 mm), 4.5 kg (1775 mm)

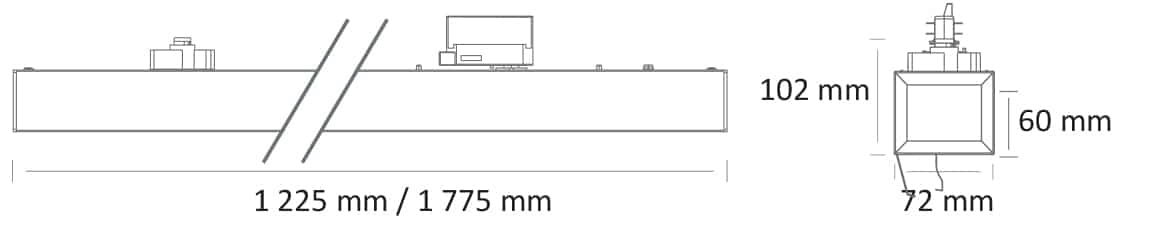

  • Standard body length: 1,225 or 1,775 mm
  • Converter: Fixed, DALI Gradation Converter (CDIMMDALI)

Type of lighting General
Application domain Retail / stores, Grocery Stores, Specialized Stores
Color temperature 3000 K, 3500 K, 4000 K
Mounting type On rail 3 ignitions
IP 20
