Product | Track Lighting Luminaires | Éclairage Général – Appareils Led
LS 5145 LED
Track suspended luminaire for LINEAR LED module, maximum 4574 lumens

Color(s) :

Norms : Classe II | IP 20 | 650° | RG0

Driver(s) :

Efficiency Energy Class : D
Recessed cut out :

Download the technical sheet:

CRI of 80
MacAdam Ellipse: 3 SDCM
Available in 3 000 K and 4 000 K
50 000 hours lamp life (L90B10)
Luminous efficiency of system up to 157 lm/W
3 circuits track adaptor
Housing made of prelacquered steel
Endcaps made of injected polycarbonate
Static heat sink
Weight: approx. 2 kg (613 mm), 3 kg (1173 mm)

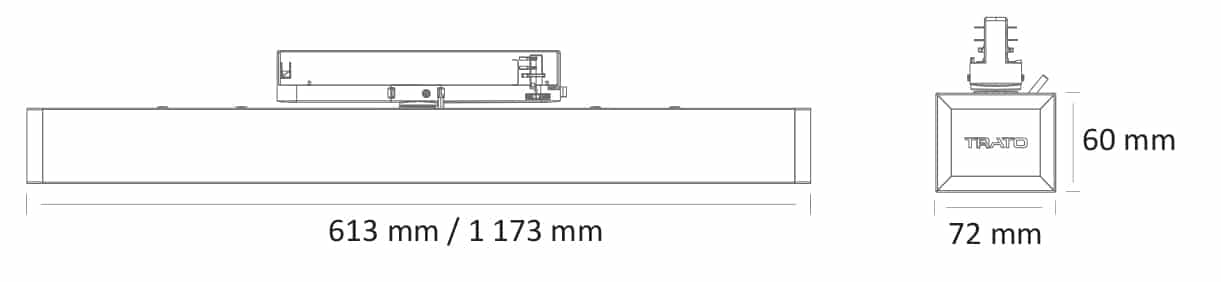

Standard length: 613 or 1173 mm
Driver(s): Fixed, Dimmable driver DALI (CDIMMDALI)
Photobiological risk group 0

Type of lighting Général
Application domain Retail / magasins, GSA, GSS
Color temperature 3000 K, 4000 K
Mounting type Sur rail 3 allumages
IP 20
